It starts a background thread by default. More...

#include <ConnecterThread.h>

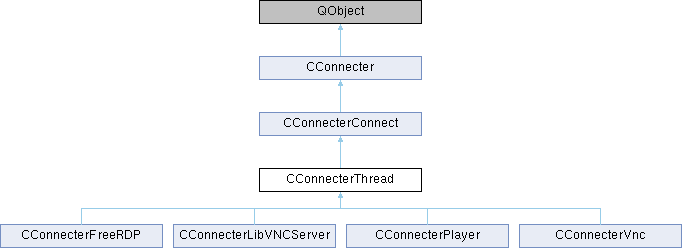

Inheritance diagram for CConnecterThread:

Public Slots
virtual int	Connect () override
	Start a background thread, and create an instance of CConnect .

virtual int	DisConnect () override
	emit sigConnected() in CConnectThread::run()

virtual void	slotScreenShot ()

Public Slots inherited from CConnecterConnect
virtual int	Connect () override

virtual int	DisConnect () override
	emit sigDisconnected() in here

Public Slots inherited from CConnecter
virtual int	Connect ()=0
	Start connect.

virtual int	DisConnect ()=0
	Close connect.

Public Member Functions
	CConnecterThread (CPluginClient *plugin)

virtual QWidget *	GetViewer () override
	Get Viewer.

Public Member Functions inherited from CConnecterConnect
	CConnecterConnect (CPluginClient *plugin)

virtual const QString	Id () override
	Identity.

virtual const QString	Name () override
	Display order:

virtual const QString	Description () override
	Description.

virtual CConnect *	InstanceConnect ()=0
	New connect.

virtual CParameterBase *	GetParameter ()
	Get parameter.

virtual int	SetParameter (CParameterBase *p)

Public Member Functions inherited from CConnecter
	CConnecter (CPluginClient *plugin)

virtual const QString	Protocol () const
	Protocol.

virtual qint16	Version ()=0
	Version.

virtual const QIcon	Icon () const
	Icon.

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get operate menu.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual QString	ServerName () override
	Current connect server name (remote desktop name, if not present, then IP:PORT).

virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

virtual int	Load (QSettings &set) override
	Load parameters.

virtual int	Save (QSettings &set) override
	Save parameters.

virtual int	InitialMenu ()

Protected Member Functions inherited from CConnecter
virtual int	SetParameter (CParameter *p)
	Set parameters.

CParameter *	GetParameter ()

Q_INVOKABLE CPluginClient *	GetPlugClient () const

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Protected Attributes
QAction *	m_pMenuZoom

QAction *	m_pZoomToWindow

QAction *	m_pZoomAspectRatio

QAction *	m_pZoomOriginal

QAction *	m_pZoomIn

QAction *	m_pZoomOut

QSpinBox *	m_psbZoomFactor

QAction *	m_pScreenShot

Protected Attributes inherited from CConnecter
QMenu	m_Menu

QAction *	m_pSettings

Private Slots
void	slotValueChanged (int v)
	emit by zoom menu in the class

void	slotShortcutCtlAltDel ()

void	slotShortcutLock ()

Private Attributes
CConnectThread *	m_pThread

CFrmViewer *	m_pFrmViewer

CFrmScroll *	m_pScroll

Additional Inherited Members
Signals inherited from CConnecterConnect
void	sigOpenConnect (CConnecterConnect *)

void	sigCloseconnect (CConnecterConnect *)

Signals inherited from CConnecter
void	sigConnected ()
	Successful connection signal.

void	sigDisconnect ()
	Notify the user to disconnect.

void	sigDisconnected ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (CConnecter *pConnecter)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Protected Member Functions inherited from CConnecter
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Detailed Description

It starts a background thread by default.

It implements a background thread to handle a connection. Can be used with plugins whose plugin interface derives from CPluginClient for connection is blocking model.

Principle: Start a background thread (CConnectThread) in Connect() . Call InstanceConnect() in the thread to instantiate CConnect, and start the timer in CConnect::Connect(). This timer is called in the background thread. Through the operation of the timer, start a non-Qt event loop (that is, normal loop processing. May block), See CConnect. And CConnect supports the Qt event (the signal-slot mechanism of QObject. no-block).

Sequen diagram:

Note

The interface only is implemented by plug-in
The specific plug-in needs to implement the following interface.

Implement InstanceConnect() . Generate a connection object. The connection object runs in a background thread.

See also: CConnect CConnectThread CConnecter CPluginClient CFrmViewer

Definition at line 56 of file ConnecterThread.h.

Constructor & Destructor Documentation

◆ ~CConnecterThread()

CConnecterThread::~CConnecterThread ( )

virtual

Definition at line 36 of file ConnecterThread.cpp.

Member Function Documentation

◆ Clean()

int CConnecterThread::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CClient::DeleteConnecter

Reimplemented from CConnecter.

Reimplemented in CConnecterFreeRDP, CConnecterLibVNCServer, CConnecterPlayer, and CConnecterVnc.

Definition at line 64 of file ConnecterThread.cpp.

◆ Connect

int CConnecterThread::Connect ( )

overridevirtualslot

Start a background thread, and create an instance of CConnect .

See also: CConnectThread

Definition at line 201 of file ConnecterThread.cpp.

◆ DisConnect

int CConnecterThread::DisConnect ( )

overridevirtualslot

emit sigConnected() in CConnectThread::run()

See also: CConnectThread CConnectThread::run()

Definition at line 216 of file ConnecterThread.cpp.

◆ GetViewer()

QWidget * CConnecterThread::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

See also: sigConnected CFrmViewer::CFrmViewer

Implements CConnecter.

Definition at line 196 of file ConnecterThread.cpp.

◆ Initial()

int CConnecterThread::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CClient::CreateConnecter

Reimplemented from CConnecter.

Reimplemented in CConnecterFreeRDP, CConnecterLibVNCServer, CConnecterPlayer, and CConnecterVnc.

Definition at line 41 of file ConnecterThread.cpp.

◆ InitialMenu()

int CConnecterThread::InitialMenu ( )

protectedvirtual

Definition at line 78 of file ConnecterThread.cpp.

◆ Load()

int CConnecterThread::Load ( QSettings & set )

overrideprotectedvirtual

Load parameters.

Reimplemented from CConnecter.

Definition at line 242 of file ConnecterThread.cpp.

◆ Save()

int CConnecterThread::Save ( QSettings & set )

overrideprotectedvirtual

Save parameters.

Reimplemented from CConnecter.

Definition at line 270 of file ConnecterThread.cpp.

◆ ServerName()

QString CConnecterThread::ServerName ( )

overrideprotectedvirtual

Current connect server name (remote desktop name, if not present, then IP:PORT).

eg: Server name or Ip:Port

Returns: Current connect server name.

Reimplemented from CConnecterConnect.

Reimplemented in CConnecterVnc.

Definition at line 229 of file ConnecterThread.cpp.

◆ slotScreenShot

void CConnecterThread::slotScreenShot ( )

virtualslot

Definition at line 321 of file ConnecterThread.cpp.

◆ slotShortcutCtlAltDel

void CConnecterThread::slotShortcutCtlAltDel ( )

privateslot

Definition at line 336 of file ConnecterThread.cpp.

◆ slotShortcutLock

void CConnecterThread::slotShortcutLock ( )

privateslot

Definition at line 350 of file ConnecterThread.cpp.

◆ slotValueChanged

void CConnecterThread::slotValueChanged ( int v )

privateslot

emit by zoom menu in the class

Definition at line 314 of file ConnecterThread.cpp.

Member Data Documentation

◆ m_pFrmViewer

CFrmViewer* CConnecterThread::m_pFrmViewer

private

Definition at line 108 of file ConnecterThread.h.

◆ m_pMenuZoom

QAction* CConnecterThread::m_pMenuZoom

protected

Definition at line 112 of file ConnecterThread.h.

◆ m_psbZoomFactor

QSpinBox* CConnecterThread::m_psbZoomFactor

protected

Definition at line 118 of file ConnecterThread.h.

◆ m_pScreenShot

QAction* CConnecterThread::m_pScreenShot

protected

Definition at line 119 of file ConnecterThread.h.

◆ m_pScroll

CFrmScroll* CConnecterThread::m_pScroll

private

Definition at line 109 of file ConnecterThread.h.

◆ m_pThread

CConnectThread* CConnecterThread::m_pThread

private

Definition at line 107 of file ConnecterThread.h.

◆ m_pZoomAspectRatio

QAction* CConnecterThread::m_pZoomAspectRatio

protected

Definition at line 114 of file ConnecterThread.h.

◆ m_pZoomIn

QAction* CConnecterThread::m_pZoomIn

protected

Definition at line 116 of file ConnecterThread.h.

◆ m_pZoomOriginal

QAction* CConnecterThread::m_pZoomOriginal

protected

Definition at line 115 of file ConnecterThread.h.

◆ m_pZoomOut

QAction* CConnecterThread::m_pZoomOut

protected

Definition at line 117 of file ConnecterThread.h.

◆ m_pZoomToWindow

QAction* CConnecterThread::m_pZoomToWindow

protected

Definition at line 113 of file ConnecterThread.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/ConnecterThread.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/ConnecterThread.cpp
