类 CBackendFreeRDP 继承关系图:

[图例]

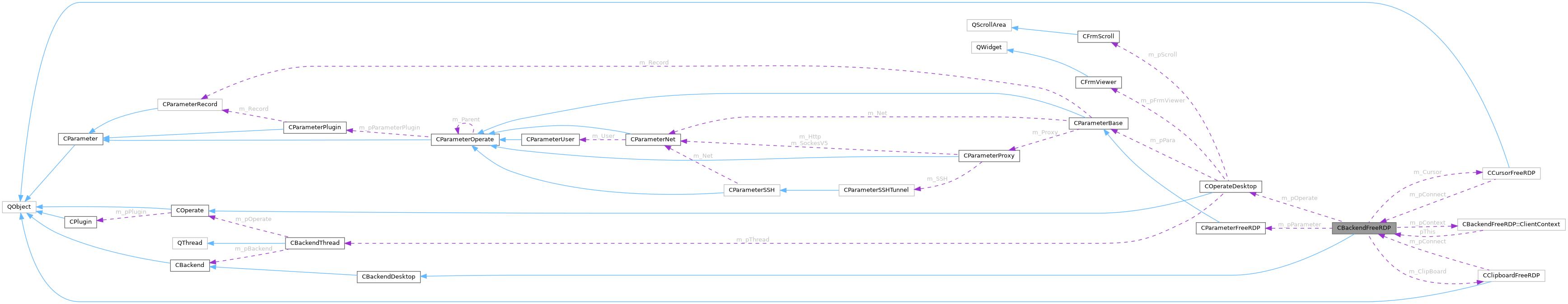

CBackendFreeRDP 的协作图:

[图例]

类
struct	ClientContext

Public 槽
virtual void	slotClipBoardChanged () override

Public 槽继承自 CBackendDesktop
virtual void	slotClipBoardChanged ()=0
	当剪切板发生改变时调用

virtual void	slotMousePressEvent (QMouseEvent *event, QPoint pos)

virtual void	slotMouseReleaseEvent (QMouseEvent *event, QPoint pos)

virtual void	slotMouseMoveEvent (QMouseEvent *event, QPoint pos)

virtual void	slotWheelEvent (QWheelEvent *event, QPoint pos)

virtual void	slotKeyPressEvent (QKeyEvent *event)

virtual void	slotKeyReleaseEvent (QKeyEvent *event)

virtual void	slotInputMethodEvent (QInputMethodEvent *event)

Public 成员函数
	CBackendFreeRDP (COperateFreeRDP *pOperate)

Public 成员函数继承自 CBackendDesktop
	CBackendDesktop (COperateDesktop *pOperate=nullptr, bool bDirectConnection=true)

virtual bool	event (QEvent *event) override

Public 成员函数继承自 CBackend
	CBackend (COperate *pOperate=nullptr)

virtual int	Start ()
	开始。根据　OnInit()　返回值来决定是否开始定时器来支持非 qt 事件

virtual int	Stop ()
	停止

静态 Public 成员函数
static BOOL	cbGlobalInit ()

static void	cbGlobalUninit ()

static BOOL	cbClientNew (freerdp instance, rdpContext context)

static void	cbClientFree (freerdp instance, rdpContext context)

static int	cbClientStart (rdpContext *context)

static int	cbClientStop (rdpContext *context)

static BOOL	cb_pre_connect (freerdp *instance)
	Callback given to freerdp_connect() to process the pre-connect operations.

static BOOL	cb_post_connect (freerdp *instance)
	Callback given to freerdp_connect() to perform post-connection operations.

static void	cb_post_disconnect (freerdp *instance)

static int	cb_logon_error_info (freerdp *instance, UINT32 data, UINT32 type)

static void	OnChannelConnectedEventHandler (void context, ChannelConnectedEventArgs e)

static void	OnChannelDisconnectedEventHandler (void context, ChannelDisconnectedEventArgs e)

static BOOL	cb_authenticate (freerdp instance, char username, char password, char *domain)

static BOOL	cb_GatewayAuthenticate (freerdp instance, char username, char password, char *domain)

static int	cb_verify_x509_certificate (freerdp instance, const BYTE data, size_t length, const char *hostname, UINT16 port, DWORD flags)
	Callback used if user interaction is required to accept a certificate.

static DWORD	cb_verify_certificate_ex (freerdp instance, const char host, UINT16 port, const char common_name, const char subject, const char issuer, const char fingerprint, DWORD flags)
	Callback set in the rdp_freerdp structure, and used to make a certificate validation when the connection requires it.

static DWORD	cb_verify_changed_certificate_ex (freerdp instance, const char host, UINT16 port, const char common_name, const char subject, const char issuer, const char fingerprint, const char old_subject, const char old_issuer, const char *old_fingerprint, DWORD flags)
	Callback set in the rdp_freerdp structure, and used to make a certificate validation when a stored certificate does not match the remote counterpart.

static BOOL	cb_present_gateway_message (freerdp instance, UINT32 type, BOOL isDisplayMandatory, BOOL isConsentMandatory, size_t length, const WCHAR message)

static BOOL	cb_begin_paint (rdpContext *context)

static BOOL	cb_end_paint (rdpContext *context)

static BOOL	cb_desktop_resize (rdpContext *context)

static BOOL	cb_play_bell_sound (rdpContext context, const PLAY_SOUND_UPDATE play_sound)

static BOOL	cb_keyboard_set_indicators (rdpContext *context, UINT16 led_flags)

static BOOL	cb_keyboard_set_ime_status (rdpContext *context, UINT16 imeId, UINT32 imeState, UINT32 imeConvMode)

static UINT32	GetImageFormat (QImage::Format format)

static const char *	GetTitle (freerdp *instance)

Protected 成员函数
virtual void	mousePressEvent (QMouseEvent *event) override

virtual void	mouseReleaseEvent (QMouseEvent *event) override

virtual void	mouseMoveEvent (QMouseEvent *event) override

virtual void	wheelEvent (QWheelEvent *event) override

virtual void	keyPressEvent (QKeyEvent *event) override

virtual void	keyReleaseEvent (QKeyEvent *event) override

virtual void	InputMethodEvent (QInputMethodEvent *event) override

virtual int	WakeUp () override
	唤醒后台线程

Private 槽
void	slotConnectProxyServer (QString szHost, quint16 nPort)

Private 成员函数
UINT32	GetImageFormat ()

BOOL	CreateImage (rdpContext *context)

BOOL	UpdateBuffer (INT32 x, INT32 y, INT32 w, INT32 h)

int	RedirectionSound ()

int	RedirectionMicrophone ()

int	RedirectionDriver ()

int	RedirectionPrinter ()

int	RedirectionSerial ()

bool	SendMouseEvent (UINT16 flags, QPoint pos, bool isExtended)

virtual OnInitReturnValue	OnInit () override
	初始化

virtual int	OnClean () override
	清理

virtual int	OnProcess () override
	插件连接的具体操作处理。因为此插件是非Qt事件，所以在此函数中等待。

int	OnProcess (int nTimeout)
	插件连接的具体操作处理。因为此插件是非Qt事件，所以在此函数中等待。

Private 属性
COperateDesktop *	m_pOperate

ClientContext *	m_pContext

CParameterFreeRDP *	m_pParameter

RDP_CLIENT_ENTRY_POINTS	m_ClientEntryPoints

QImage	m_Image

CClipboardFreeRDP	m_ClipBoard

CCursorFreeRDP	m_Cursor

HANDLE	m_writeEvent

友元
class	CCursorFreeRDP

额外继承的成员函数
信号继承自 CBackendDesktop
void	sigSetDesktopSize (int width, int height)

void	sigServerName (const QString &szName)

void	sigUpdateRect (const QRect &r, const QImage &image)
	通知视图，图像更新

void	sigUpdateRect (const QImage &image)
	Notify the CFrmView update image

void	sigUpdateCursor (const QCursor &cursor)

void	sigUpdateCursorPosition (const QPoint &pos)

void	sigUpdateLedState (unsigned int state)

void	sigSetClipboard (QMimeData *data)

信号继承自 CBackend
void	sigRunning ()
	当插件开始成功后触发。仅由插件触发

void	sigStop ()
	需要通知用户停止时触发。仅由插件触发。当从插件中需要停止时触发。例如：对端断开连接、重置连接或者连接出错。

void	sigFinished ()
	停止成功信号。仅由插件触发

void	sigError (const int nError, const QString &szError=QString())
	当有错误产生时触发

void	sigInformation (const QString &szInfo)
	从后台线程中触发在主线程中显示信息，不阻塞后台线程

void	sigShowMessageBox (const QString &szTitle, const QString &szMessage, const QMessageBox::Icon &icon=QMessageBox::Information)
	从后台线程中触发在主线程中显示消息对话框(QMessageBox)，不阻塞后台线程

void	sigBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString checkBoxContext=QString())
	阻塞后台线程，并在前台线程中显示消息对话框(QMessageBox)

void	sigBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	阻塞后台线程，并在前台线程中显示输入对话框 (QInputDialog)

void	sigBlockShowWidget (const QString &className, int &nRet, void *pContext)
	阻塞后台线程，并在前台线程中显示窗口。

Protected 类型继承自 CBackend
enum class	OnInitReturnValue { Fail = -1 , Success = 0 , UseOnProcess = Success , NotUseOnProcess = 1 }

Protected 槽继承自 CBackend
virtual void	slotTimeOut ()
	一个非 Qt 事件处理，它调用 OnProcess()，并根据其返回值开始新的定时器。如果是不是一个非 Qt 事件循环（就是普通的循环处理），可以重载它，或者 OnInit() 返回值大于 0

详细描述

在文件 BackendFreeRDP.h 第 25 行定义.

构造及析构函数说明

◆ ~CBackendFreeRDP()

CBackendFreeRDP::~CBackendFreeRDP ( )

overridevirtual

在文件 BackendFreeRDP.cpp 第 88 行定义.

成员函数说明

◆ cb_authenticate()

BOOL CBackendFreeRDP::cb_authenticate	(	freerdp *	instance,
		char **	username,
		char **	password,
		char **	domain
	)

static

在文件 BackendFreeRDP.cpp 第 1525 行定义.

◆ cb_begin_paint()

BOOL CBackendFreeRDP::cb_begin_paint ( rdpContext * context )

static

在文件 BackendFreeRDP.cpp 第 1896 行定义.

◆ cb_desktop_resize()

BOOL CBackendFreeRDP::cb_desktop_resize ( rdpContext * context )

static

在文件 BackendFreeRDP.cpp 第 1995 行定义.

◆ cb_end_paint()

BOOL CBackendFreeRDP::cb_end_paint ( rdpContext * context )

static

在文件 BackendFreeRDP.cpp 第 1931 行定义.

◆ cb_GatewayAuthenticate()

BOOL CBackendFreeRDP::cb_GatewayAuthenticate	(	freerdp *	instance,
		char **	username,
		char **	password,
		char **	domain
	)

static

在文件 BackendFreeRDP.cpp 第 1556 行定义.

◆ cb_keyboard_set_ime_status()

BOOL CBackendFreeRDP::cb_keyboard_set_ime_status	(	rdpContext *	context,
		UINT16	imeId,
		UINT32	imeState,
		UINT32	imeConvMode
	)

static

在文件 BackendFreeRDP.cpp 第 2061 行定义.

◆ cb_keyboard_set_indicators()

BOOL CBackendFreeRDP::cb_keyboard_set_indicators	(	rdpContext *	context,
		UINT16	led_flags
	)

static

在文件 BackendFreeRDP.cpp 第 2040 行定义.

◆ cb_logon_error_info()

int CBackendFreeRDP::cb_logon_error_info	(	freerdp *	instance,
		UINT32	data,
		UINT32	type
	)

static

在文件 BackendFreeRDP.cpp 第 997 行定义.

◆ cb_play_bell_sound()

BOOL CBackendFreeRDP::cb_play_bell_sound	(	rdpContext *	context,
		const PLAY_SOUND_UPDATE *	play_sound
	)

static

在文件 BackendFreeRDP.cpp 第 2017 行定义.

◆ cb_post_connect()

BOOL CBackendFreeRDP::cb_post_connect ( freerdp * instance )

static

Callback given to freerdp_connect() to perform post-connection operations.

It will be called only if the connection was initialized properly, and will continue the initialization based on the newly created connection.

在文件 BackendFreeRDP.cpp 第 924 行定义.

◆ cb_post_disconnect()

void CBackendFreeRDP::cb_post_disconnect ( freerdp * instance )

static

在文件 BackendFreeRDP.cpp 第 980 行定义.

◆ cb_pre_connect()

BOOL CBackendFreeRDP::cb_pre_connect ( freerdp * instance )

static

Callback given to freerdp_connect() to process the pre-connect operations.

连接之前调用。用于加载通道，检查和设置所有参数

It will fill the rdp_freerdp structure (instance) with the appropriate options to use for the connection.

参数

instance - pointer to the rdp_freerdp structure that contains the connection's parameters, and will be filled with the appropriate information.

返回: TRUE if successful. FALSE otherwise. Can exit with error code XF_EXIT_PARSE_ARGUMENTS if there is an error in the parameters.

在文件 BackendFreeRDP.cpp 第 689 行定义.

◆ cb_present_gateway_message()

BOOL CBackendFreeRDP::cb_present_gateway_message	(	freerdp *	instance,
		UINT32	type,
		BOOL	isDisplayMandatory,
		BOOL	isConsentMandatory,
		size_t	length,
		const WCHAR *	message
	)

static

在文件 BackendFreeRDP.cpp 第 1846 行定义.

◆ cb_verify_certificate_ex()

DWORD CBackendFreeRDP::cb_verify_certificate_ex	(	freerdp *	instance,
		const char *	host,
		UINT16	port,
		const char *	common_name,
		const char *	subject,
		const char *	issuer,
		const char *	fingerprint,
		DWORD	flags
	)

static

Callback set in the rdp_freerdp structure, and used to make a certificate validation when the connection requires it.

This function will actually be called by tls_verify_certificate().

参见: rdp_client_connect() and tls_connect()

参数

instance	pointer to the rdp_freerdp structure that contains the connection settings
host	The host currently connecting to
port	The port currently connecting to
common_name	The common name of the certificate, should match host or an alias of it
subject	The subject of the certificate
issuer	The certificate issuer name
fingerprint	The fingerprint of the certificate
flags	See VERIFY_CERT_FLAG_* for possible values.

返回: 1 if the certificate is trusted, 2 if temporary trusted, 0 otherwise.

在文件 BackendFreeRDP.cpp 第 1663 行定义.

◆ cb_verify_changed_certificate_ex()

DWORD CBackendFreeRDP::cb_verify_changed_certificate_ex	(	freerdp *	instance,
		const char *	host,
		UINT16	port,
		const char *	common_name,
		const char *	subject,
		const char *	issuer,
		const char *	fingerprint,
		const char *	old_subject,
		const char *	old_issuer,
		const char *	old_fingerprint,
		DWORD	flags
	)

static

Callback set in the rdp_freerdp structure, and used to make a certificate validation when a stored certificate does not match the remote counterpart.

This function will actually be called by tls_verify_certificate().

参见: rdp_client_connect() and tls_connect()

参数

instance	pointer to the rdp_freerdp structure that contains the connection settings
host	The host currently connecting to
port	The port currently connecting to
common_name	The common name of the certificate, should match host or an alias of it
subject	The subject of the certificate
issuer	The certificate issuer name
fingerprint	The fingerprint of the certificate
old_subject	The subject of the previous certificate
old_issuer	The previous certificate issuer name
old_fingerprint	The fingerprint of the previous certificate
flags	See VERIFY_CERT_FLAG_* for possible values.

返回: 1 if the certificate is trusted, 2 if temporary trusted, 0 otherwise.

在文件 BackendFreeRDP.cpp 第 1772 行定义.

◆ cb_verify_x509_certificate()

int CBackendFreeRDP::cb_verify_x509_certificate	(	freerdp *	instance,
		const BYTE *	data,
		size_t	length,
		const char *	hostname,
		UINT16	port,
		DWORD	flags
	)

static

Callback used if user interaction is required to accept a certificate.

参数

instance	Pointer to the freerdp instance.
data	Pointer to certificate data (full chain) in PEM format.
length	The length of the certificate data.
hostname	The hostname connecting to.
port	The port connecting to.
flags	Flags of type VERIFY_CERT_FLAG*

返回: 1 to accept and store a certificate, 2 to accept a certificate only for this session, 0 otherwise.

在文件 BackendFreeRDP.cpp 第 1587 行定义.

◆ cbClientFree()

void CBackendFreeRDP::cbClientFree	(	freerdp *	instance,
		rdpContext *	context
	)

static

在文件 BackendFreeRDP.cpp 第 526 行定义.

◆ cbClientNew()

BOOL CBackendFreeRDP::cbClientNew	(	freerdp *	instance,
		rdpContext *	context
	)

static

在文件 BackendFreeRDP.cpp 第 501 行定义.

◆ cbClientStart()

int CBackendFreeRDP::cbClientStart ( rdpContext * context )

static

在文件 BackendFreeRDP.cpp 第 531 行定义.

◆ cbClientStop()

int CBackendFreeRDP::cbClientStop ( rdpContext * context )

static

在文件 BackendFreeRDP.cpp 第 655 行定义.

◆ cbGlobalInit()

BOOL CBackendFreeRDP::cbGlobalInit ( )

static

在文件 BackendFreeRDP.cpp 第 490 行定义.

◆ cbGlobalUninit()

void CBackendFreeRDP::cbGlobalUninit ( )

static

在文件 BackendFreeRDP.cpp 第 496 行定义.

◆ CreateImage()

BOOL CBackendFreeRDP::CreateImage ( rdpContext * context )

private

在文件 BackendFreeRDP.cpp 第 1110 行定义.

◆ GetImageFormat() [1/2]

UINT32 CBackendFreeRDP::GetImageFormat ( )

private

在文件 BackendFreeRDP.cpp 第 1105 行定义.

◆ GetImageFormat() [2/2]

UINT32 CBackendFreeRDP::GetImageFormat ( QImage::Format format )

static

在文件 BackendFreeRDP.cpp 第 1084 行定义.

◆ GetTitle()

const char * CBackendFreeRDP::GetTitle ( freerdp * instance )

static

在文件 BackendFreeRDP.cpp 第 882 行定义.

◆ InputMethodEvent()

void CBackendFreeRDP::InputMethodEvent ( QInputMethodEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2262 行定义.

◆ keyPressEvent()

void CBackendFreeRDP::keyPressEvent ( QKeyEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2229 行定义.

◆ keyReleaseEvent()

void CBackendFreeRDP::keyReleaseEvent ( QKeyEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2246 行定义.

◆ mouseMoveEvent()

void CBackendFreeRDP::mouseMoveEvent ( QMouseEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2146 行定义.

◆ mousePressEvent()

void CBackendFreeRDP::mousePressEvent ( QMouseEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2155 行定义.

◆ mouseReleaseEvent()

void CBackendFreeRDP::mouseReleaseEvent ( QMouseEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2192 行定义.

◆ OnChannelConnectedEventHandler()

void CBackendFreeRDP::OnChannelConnectedEventHandler	(	void *	context,
		ChannelConnectedEventArgs *	e
	)

static

在文件 BackendFreeRDP.cpp 第 1012 行定义.

◆ OnChannelDisconnectedEventHandler()

void CBackendFreeRDP::OnChannelDisconnectedEventHandler	(	void *	context,
		ChannelDisconnectedEventArgs *	e
	)

static

在文件 BackendFreeRDP.cpp 第 1051 行定义.

◆ OnClean()

int CBackendFreeRDP::OnClean ( )

overrideprivatevirtual

清理

参见: Stop()

实现了 CBackend.

在文件 BackendFreeRDP.cpp 第 315 行定义.

◆ OnInit()

CBackendFreeRDP::OnInitReturnValue CBackendFreeRDP::OnInit ( )

overrideprivatevirtual

初始化

返回

< 0: 错误
= 0: 使用 OnProcess() (非 Qt 事件循环)
> 0: 不使用 OnProcess() (qt 事件循环)

参见: Start()

实现了 CBackend.

在文件 BackendFreeRDP.cpp 第 99 行定义.

◆ OnProcess() [1/2]

int CBackendFreeRDP::OnProcess ( )

overrideprivatevirtual

插件连接的具体操作处理。因为此插件是非Qt事件，所以在此函数中等待。

返回

>= 0: continue, Interval call time (msec)
= -1: stop
< -1: error

参见: CConnect::Connect() CConnect::slotTimeOut()

重载 CBackend .

在文件 BackendFreeRDP.cpp 第 365 行定义.

◆ OnProcess() [2/2]

int CBackendFreeRDP::OnProcess ( int nTimeout )

private

插件连接的具体操作处理。因为此插件是非Qt事件，所以在此函数中等待。

返回

>= 0: continue, Interval call time (msec)
= -1: stop
< -1: error

参见: CConnect::Connect() CConnect::slotTimeOut()

在文件 BackendFreeRDP.cpp 第 383 行定义.

◆ RedirectionDriver()

int CBackendFreeRDP::RedirectionDriver ( )

private

在文件 BackendFreeRDP.cpp 第 2392 行定义.

◆ RedirectionMicrophone()

int CBackendFreeRDP::RedirectionMicrophone ( )

private

在文件 BackendFreeRDP.cpp 第 2347 行定义.

◆ RedirectionPrinter()

int CBackendFreeRDP::RedirectionPrinter ( )

private

在文件 BackendFreeRDP.cpp 第 2424 行定义.

◆ RedirectionSerial()

int CBackendFreeRDP::RedirectionSerial ( )

private

在文件 BackendFreeRDP.cpp 第 2458 行定义.

◆ RedirectionSound()

int CBackendFreeRDP::RedirectionSound ( )

private

在文件 BackendFreeRDP.cpp 第 2280 行定义.

◆ SendMouseEvent()

bool CBackendFreeRDP::SendMouseEvent	(	UINT16	flags,
		QPoint	pos,
		bool	isExtended
	)

private

在文件 BackendFreeRDP.cpp 第 2083 行定义.

◆ slotClipBoardChanged

void CBackendFreeRDP::slotClipBoardChanged ( )

overridevirtualslot

在文件 BackendFreeRDP.cpp 第 482 行定义.

◆ slotConnectProxyServer

void CBackendFreeRDP::slotConnectProxyServer	(	QString	szHost,
		quint16	nPort
	)

privateslot

在文件 BackendFreeRDP.cpp 第 2498 行定义.

◆ UpdateBuffer()

BOOL CBackendFreeRDP::UpdateBuffer	(	INT32	x,
		INT32	y,
		INT32	w,
		INT32	h
	)

private

在文件 BackendFreeRDP.cpp 第 1914 行定义.

◆ WakeUp()

int CBackendFreeRDP::WakeUp ( )

overrideprotectedvirtual

唤醒后台线程

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2074 行定义.

◆ wheelEvent()

void CBackendFreeRDP::wheelEvent ( QWheelEvent * event )

overrideprotectedvirtual

重载 CBackendDesktop .

在文件 BackendFreeRDP.cpp 第 2103 行定义.

友元及相关函数文档

◆ CCursorFreeRDP

friend class CCursorFreeRDP

friend

在文件 BackendFreeRDP.h 第 180 行定义.

类成员变量说明

◆ m_ClientEntryPoints

RDP_CLIENT_ENTRY_POINTS CBackendFreeRDP::m_ClientEntryPoints

private

在文件 BackendFreeRDP.h 第 174 行定义.

◆ m_ClipBoard

CClipboardFreeRDP CBackendFreeRDP::m_ClipBoard

private

在文件 BackendFreeRDP.h 第 178 行定义.

◆ m_Cursor

CCursorFreeRDP CBackendFreeRDP::m_Cursor

private

在文件 BackendFreeRDP.h 第 179 行定义.

◆ m_Image

QImage CBackendFreeRDP::m_Image

private

在文件 BackendFreeRDP.h 第 176 行定义.

◆ m_pContext

ClientContext* CBackendFreeRDP::m_pContext

private

在文件 BackendFreeRDP.h 第 171 行定义.

◆ m_pOperate

COperateDesktop* CBackendFreeRDP::m_pOperate

private

在文件 BackendFreeRDP.h 第 162 行定义.

◆ m_pParameter

CParameterFreeRDP* CBackendFreeRDP::m_pParameter

private

在文件 BackendFreeRDP.h 第 172 行定义.

◆ m_writeEvent

HANDLE CBackendFreeRDP::m_writeEvent

private

在文件 BackendFreeRDP.h 第 182 行定义.

该类的文档由以下文件生成:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/FreeRDP/Client/BackendFreeRDP.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/FreeRDP/Client/BackendFreeRDP.cpp

类

Public 槽

Public 成员函数

静态 Public 成员函数

Protected 成员函数

Private 槽

Private 成员函数

Private 属性

友元

额外继承的成员函数

详细描述

构造及析构函数说明

◆ ~CBackendFreeRDP()

成员函数说明

◆ cb_authenticate()

◆ cb_begin_paint()

◆ cb_desktop_resize()

◆ cb_end_paint()

◆ cb_GatewayAuthenticate()

◆ cb_keyboard_set_ime_status()

◆ cb_keyboard_set_indicators()

◆ cb_logon_error_info()

◆ cb_play_bell_sound()

◆ cb_post_connect()

◆ cb_post_disconnect()

◆ cb_pre_connect()

◆ cb_present_gateway_message()

◆ cb_verify_certificate_ex()

◆ cb_verify_changed_certificate_ex()

◆ cb_verify_x509_certificate()

◆ cbClientFree()

◆ cbClientNew()

◆ cbClientStart()

◆ cbClientStop()

◆ cbGlobalInit()

◆ cbGlobalUninit()

◆ CreateImage()

◆ GetImageFormat() [1/2]

◆ GetImageFormat() [2/2]

◆ GetTitle()

◆ InputMethodEvent()

◆ keyPressEvent()

◆ keyReleaseEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ OnChannelConnectedEventHandler()

◆ OnChannelDisconnectedEventHandler()

◆ OnClean()

◆ OnInit()

◆ OnProcess() [1/2]

◆ OnProcess() [2/2]

◆ RedirectionDriver()

◆ RedirectionMicrophone()

◆ RedirectionPrinter()

◆ RedirectionSerial()

◆ RedirectionSound()

◆ SendMouseEvent()

◆ slotClipBoardChanged

◆ slotConnectProxyServer

◆ UpdateBuffer()

◆ WakeUp()

◆ wheelEvent()

友元及相关函数文档

◆ CCursorFreeRDP

类成员变量说明

◆ m_ClientEntryPoints

◆ m_ClipBoard

◆ m_Cursor

◆ m_Image

◆ m_pContext

◆ m_pOperate

◆ m_pParameter

◆ m_writeEvent
