CParameterUI Class Reference

The parameter UI interface. More...

#include <ParameterUI.h>

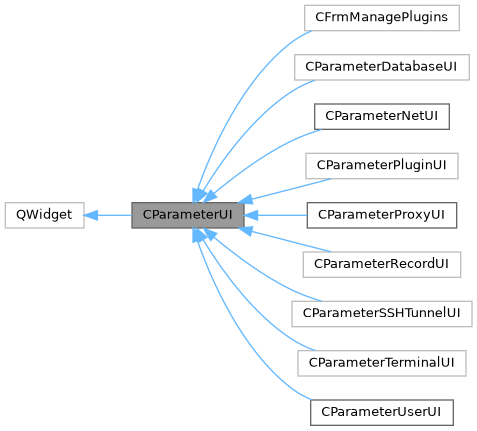

Inheritance diagram for CParameterUI:

Collaboration diagram for CParameterUI:

Public Slots
virtual void	slotSetParameter (CParameter *pParameter)
	[override functions]
virtual void	slotAccept ()
	Accept parameters.

Public Member Functions
	CParameterUI (QWidget *parent=nullptr)
virtual int	SetParameter (CParameter *pParameter)=0
	[override functions]
virtual Q_INVOKABLE bool	CheckValidity (bool validity=false)
	Check parameters validity.
virtual int	Accept ()=0
	Accept parameters.

Detailed Description

The parameter UI interface.

See also

CParameter

Definition at line 14 of file ParameterUI.h.

Constructor & Destructor Documentation

CParameterUI()

CParameterUI::CParameterUI ( QWidget *  parent = nullptr )

explicit

Definition at line 5 of file ParameterUI.cpp.

Member Function Documentation

Accept()

virtual int CParameterUI::Accept ( )

pure virtual

Accept parameters.

If necessary, you can call CheckValidity first.

void CDlgSetFreeRDP::on_pbOk_clicked()
{
    int nRet = 0;

    if(!ui->wNet->CheckValidity(true)) {
        ui->tabWidget->setCurrentIndex(0);
        return;
    }
    if(!m_pProxyUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pProxyUI);
        return;
    }
    if(!m_pRecordUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pRecordUI);
        return;
    }

    m_pSettings->SetName(ui->leName->text());

    // Server
    m_pSettings->SetDomain(ui->leDomain->text());
    nRet = ui->wNet->Accept();
    if(nRet) return;

    nRet = m_pProxyUI->Accept();
    if(nRet) return;

    nRet = m_pRecordUI->Accept();
    if(nRet) return;

    m_pSettings->SetOnlyView(ui->cbOnlyView->isChecked());
    m_pSettings->SetClipboard(ui->cbClipboard->isChecked());
    m_pSettings->SetShowServerName(ui->cbShowServerName->isChecked());

    // Display
    m_pSettings->SetUseMultimon(ui->cbAllMonitor->isChecked());
    QString szSize = ui->cbDesktopSize->currentText();
    int index = szSize.indexOf("×");
    if(-1 < index)
    {
        UINT32 width = szSize.left(index).toInt();
        UINT32 height = szSize.right(szSize.length() - index - 1).toInt();
        m_pSettings->SetDesktopWidth(width);
        m_pSettings->SetDesktopHeight(height);
    }
    m_pSettings->SetColorDepth(ui->cbColorDepth->currentData().toInt());
    m_pSettings->SetReconnectInterval(ui->sbReconnect->value());

    // Redirection
    m_pSettings->SetRedirectionPrinter(ui->cbPrinter->isChecked());
    m_pSettings->SetEnableLocalInputMethod(ui->cbEnableLocalInputMethod->isChecked());
    if(HasAudioOutput()) {
        CParameterFreeRDP::RedirecionSoundType tRdirectionSound
            = CParameterFreeRDP::RedirecionSoundType::Disable;
        if(ui->rbAudioDisable->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Disable;
        else if(ui->rbAudioLocal->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Local;
        else if(ui->rbAudioRemote->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Remote;
        m_pSettings->SetRedirectionSound(tRdirectionSound);
    } else {
        m_pSettings->SetRedirectionSound(
            CParameterFreeRDP::RedirecionSoundType::Disable);
    }
    m_pSettings->SetRedirectionSoundParameters(ui->leRdpSnd->text());
    if(HasAudioInput())
        m_pSettings->SetRedirectionMicrophone(ui->cbAudin->isChecked());
    else
        m_pSettings->SetRedirectionMicrophone(false);
    m_pSettings->SetRedirectionMicrophoneParameters(ui->leAudin->text());

    QStringList lstDrives;
    //获取选中的行，默认获取选中行的第一列数据（0），列的索引值和上面一样0、1、2、3......
    QModelIndexList selected = ui->tvDrive->selectionModel()->selectedRows(0);
    QList<QModelIndex>::iterator it;
    QModelIndex modelIndex;
    QString szPath;
    for (it = selected.begin(); it != selected.end(); ++it)
    {
        modelIndex = *it;
        szPath = m_pFileModel->filePath(modelIndex);
        if(!szPath.isEmpty())
            lstDrives.append(szPath);
    }
    m_pSettings->SetRedirectionDrives(lstDrives);

    // Security
    m_pSettings->SetNegotiateSecurityLayer(ui->cbSecurityEnable->isChecked());
    uint security = 0;
    if(ui->cbSecurityRDP->isChecked())
        security |= CParameterFreeRDP::Security::RDP;
    if(ui->cbSecurityTls->isChecked())
        security |= CParameterFreeRDP::Security::TLS;
    if(ui->cbSecurityNLA->isChecked())
        security |= CParameterFreeRDP::Security::NLA;
    if(ui->cbSecurityNlaExt->isChecked())
        security |= CParameterFreeRDP::Security::NLA_Ext;
    if(ui->cbSecurityRDSTLS->isChecked())
        security |= CParameterFreeRDP::Security::RDSTLS;
    if(ui->cbSecurityRDSAAD->isChecked())
        security |= CParameterFreeRDP::Security::RDSAAD;
    m_pSettings->SetSecurity((CParameterFreeRDP::Security)security);

    // Tls version
    if(ui->rbTls1_0->isChecked())
        m_pSettings->SetTlsVersion(TLS1_VERSION);
    else if(ui->rbTls1_1->isChecked())
        m_pSettings->SetTlsVersion(TLS1_1_VERSION);
    else if(ui->rbTls1_2->isChecked())
        m_pSettings->SetTlsVersion(TLS1_2_VERSION);
    else if(ui->rbTls1_3->isChecked())
        m_pSettings->SetTlsVersion(TLS1_3_VERSION);

    // Connect type
    m_pSettings->SetConnectType(ui->cbConnectType->currentData().toUInt());
    // Performance flags
    UINT32 performanceFlags = 0;
    if(!ui->cbDesktopBackground->isChecked())
        performanceFlags |= PERF_DISABLE_WALLPAPER;
    if(!ui->cbWindowDrag->isChecked())
        performanceFlags |= PERF_DISABLE_FULLWINDOWDRAG;
    if(!ui->cbMenuAnims->isChecked())
        performanceFlags |= PERF_DISABLE_MENUANIMATIONS;
    if(!ui->cbThemes->isChecked())
        performanceFlags |= PERF_DISABLE_THEMING;
    if(ui->cbFontSmoothing->isChecked())
        performanceFlags |= PERF_ENABLE_FONT_SMOOTHING;
    if(ui->cbDesktopCompositing->isChecked())
        performanceFlags |= PERF_ENABLE_DESKTOP_COMPOSITION;
    m_pSettings->SetPerformanceFlags(performanceFlags);

    accept();
}

Returns

0 is success. otherwise is fail

Implemented in CParameterNetUI, CParameterProxyUI, CParameterDatabaseUI, CFrmManagePlugins, CParameterPluginUI, CParameterSSHTunnelUI, CParameterUserUI, and CParameterTerminalUI.

CheckValidity()

bool CParameterUI::CheckValidity ( bool  validity = false )

virtual

Check parameters validity.

Parameters

validity

true: Check parameters false: Not check parameters

Reimplemented in CParameterDatabaseUI, CParameterPluginUI, CParameterNetUI, CParameterProxyUI, and CParameterSSHTunnelUI.

Definition at line 9 of file ParameterUI.cpp.

SetParameter()

virtual int CParameterUI::SetParameter ( CParameter *  pParameter )

pure virtual

[override functions]

Set the parameters and initialize the user interface

Parameters

pParameter

Related parameters. Convert to the appropriate type in the overloaded function.

Implemented in CParameterNetUI, CParameterProxyUI, CParameterDatabaseUI, CFrmManagePlugins, CParameterPluginUI, CParameterSSHTunnelUI, CParameterUserUI, and CParameterTerminalUI.

slotAccept

void CParameterUI::slotAccept ( )

virtualslot

Accept parameters.

Not call CheckValidity.

Definition at line 20 of file ParameterUI.cpp.

slotSetParameter

void CParameterUI::slotSetParameter ( CParameter *  pParameter )

virtualslot

[override functions]

Set the parameters and initialize the user interface

Parameters

pParameter

Related parameters. Convert to the appropriate type in the overloaded function SetParameter().

Definition at line 15 of file ParameterUI.cpp.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterUI.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterUI.cpp
