Remote desktop connect interface. More...

#include <ConnectDesktop.h>

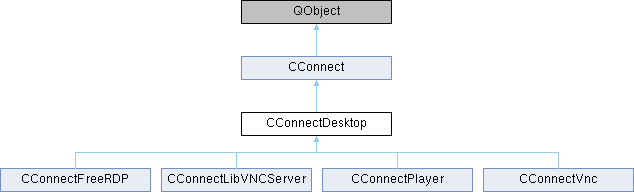

Inheritance diagram for CConnectDesktop:

Public Slots
virtual void	slotClipBoardChanged ()=0
	Be called when the clip board change.

virtual void	slotMousePressEvent (QMouseEvent *event, QPoint pos)

virtual void	slotMouseReleaseEvent (QMouseEvent *event, QPoint pos)

virtual void	slotMouseMoveEvent (QMouseEvent *event, QPoint pos)

virtual void	slotWheelEvent (QWheelEvent *event, QPoint pos)

virtual void	slotKeyPressEvent (QKeyEvent *event)

virtual void	slotKeyReleaseEvent (QKeyEvent *event)

Public Slots inherited from CConnect
virtual int	Connect ()
	Start connect.

virtual int	Disconnect ()
	Disconnect.

Signals
void	sigSetDesktopSize (int width, int height)

void	sigServerName (const QString &szName)

void	sigUpdateRect (const QRect &r, const QImage &image)
	Notify the CFrmView update image.

void	sigUpdateRect (const QImage &image)
	Notify the CFrmView update image.

void	sigUpdateCursor (const QCursor &cursor)

void	sigUpdateCursorPosition (const QPoint &pos)

void	sigUpdateLedState (unsigned int state)

void	sigSetClipboard (QMimeData *data)

Signals inherited from CConnect
void	sigConnected ()
	Emitted when the plugin is successfully connected.

void	sigDisconnect ()
	Notify the user to call disconnect.

void	sigDisconnected ()
	Successful disconnection signal.

void	sigError (const int nError, const QString &szError=QString())
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Triggering from a background thread displays information in the main thread without blocking the background thread.

void	sigShowMessageBox (const QString &szTitle, const QString &szMessage, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString checkBoxContext=QString())
	Block background threads and display message dialogs in foreground threads (QMessageBox)

void	sigBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	Block background threads and display input dialogs in foreground threads (QInputDialog)

void	sigBlockShowWidget (const QString &className, int &nRet, void *pContext)
	Blocks the background thread and displays the window in the foreground thread.

Public Member Functions
	CConnectDesktop (CConnecter *pConnecter, bool bDirectConnection=true)

virtual bool	event (QEvent *event) override

Public Member Functions inherited from CConnect
	CConnect (CConnecter *pConnecter)

Protected Member Functions
virtual int	WakeUp ()
	Wake up Connect thread(background thread)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	wheelEvent (QWheelEvent *event)

virtual void	keyPressEvent (QKeyEvent *event)

virtual void	keyReleaseEvent (QKeyEvent *event)

Protected Member Functions inherited from CConnect
virtual OnInitReturnValue	OnInit ()=0
	Specific plug-in realizes connection initialization.

virtual int	OnClean ()=0
	Clean.

virtual int	OnProcess ()
	Specific operation processing of plug-in connection.

Private Member Functions
int	SetConnecter (CConnecter *pConnecter)

int	SetViewer (CFrmViewer pView, CConnecter pConnecter, bool bDirectConnection)

Additional Inherited Members
Protected Types inherited from CConnect
enum class	OnInitReturnValue { Fail = -1 , Success = 0 , UseOnProcess = Success , NotUseOnProcess = 1 }

Protected Slots inherited from CConnect
virtual void	slotTimeOut ()
	a non-Qt event loop (that is, normal loop processing)， It call OnProcess(), and start timer.

Detailed Description

Remote desktop connect interface.

It is implemented by the Protocol plugin.

See also: CConnecterThread CFrmViewer

Definition at line 41 of file ConnectDesktop.h.

Constructor & Destructor Documentation

◆ CConnectDesktop()

CConnectDesktop::CConnectDesktop	(	CConnecter *	pConnecter,
		bool	bDirectConnection = `true`
	)

explicit

Parameters

pConnecter
bDirectConnection	true: when connect is non-Qt event and it can block event loop false: The connect is Qt event and it isn't block event loop

Definition at line 43 of file ConnectDesktop.cpp.

◆ ~CConnectDesktop()

CConnectDesktop::~CConnectDesktop ( )

overridevirtual

Definition at line 117 of file ConnectDesktop.cpp.

Member Function Documentation

◆ event()

bool CConnectDesktop::event ( QEvent * event )

overridevirtual

Definition at line 362 of file ConnectDesktop.cpp.

◆ keyPressEvent()

void CConnectDesktop::keyPressEvent ( QKeyEvent * event )

protectedvirtual

Definition at line 347 of file ConnectDesktop.cpp.

◆ keyReleaseEvent()

void CConnectDesktop::keyReleaseEvent ( QKeyEvent * event )

protectedvirtual

Definition at line 352 of file ConnectDesktop.cpp.

◆ mouseMoveEvent()

void CConnectDesktop::mouseMoveEvent ( QMouseEvent * event )

protectedvirtual

Definition at line 327 of file ConnectDesktop.cpp.

◆ mousePressEvent()

void CConnectDesktop::mousePressEvent ( QMouseEvent * event )

protectedvirtual

Definition at line 332 of file ConnectDesktop.cpp.

◆ mouseReleaseEvent()

void CConnectDesktop::mouseReleaseEvent ( QMouseEvent * event )

protectedvirtual

Definition at line 337 of file ConnectDesktop.cpp.

◆ SetConnecter()

int CConnectDesktop::SetConnecter ( CConnecter * pConnecter )

private

Definition at line 122 of file ConnectDesktop.cpp.

◆ SetViewer()

int CConnectDesktop::SetViewer	(	CFrmViewer *	pView,
		CConnecter *	pConnecter,
		bool	bDirectConnection
	)

private

Definition at line 159 of file ConnectDesktop.cpp.

◆ sigUpdateRect [1/2]

void CConnectDesktop::sigUpdateRect ( const QImage & image )

signal

Notify the CFrmView update image.

Parameters


◆ sigUpdateRect [2/2]

void CConnectDesktop::sigUpdateRect	(	const QRect &	r,
		const QImage &	image
	)

signal

Notify the CFrmView update image.

Parameters

r	update rectangle
image	An image that contains an update rectangle

◆ slotKeyPressEvent

void CConnectDesktop::slotKeyPressEvent ( QKeyEvent * event )

virtualslot

Definition at line 311 of file ConnectDesktop.cpp.

◆ slotKeyReleaseEvent

void CConnectDesktop::slotKeyReleaseEvent ( QKeyEvent * event )

virtualslot

Definition at line 319 of file ConnectDesktop.cpp.

◆ slotMouseMoveEvent

void CConnectDesktop::slotMouseMoveEvent	(	QMouseEvent *	event,
		QPoint	pos
	)

virtualslot

Definition at line 272 of file ConnectDesktop.cpp.

◆ slotMousePressEvent

void CConnectDesktop::slotMousePressEvent	(	QMouseEvent *	event,
		QPoint	pos
	)

virtualslot

Definition at line 285 of file ConnectDesktop.cpp.

◆ slotMouseReleaseEvent

void CConnectDesktop::slotMouseReleaseEvent	(	QMouseEvent *	event,
		QPoint	pos
	)

virtualslot

Definition at line 298 of file ConnectDesktop.cpp.

◆ slotWheelEvent

void CConnectDesktop::slotWheelEvent	(	QWheelEvent *	event,
		QPoint	pos
	)

virtualslot

Definition at line 257 of file ConnectDesktop.cpp.

◆ WakeUp()

int CConnectDesktop::WakeUp ( )

protectedvirtual

Wake up Connect thread(background thread)

Reimplemented in CConnectFreeRDP, CConnectLibVNCServer, and CConnectVnc.

Definition at line 357 of file ConnectDesktop.cpp.

◆ wheelEvent()

void CConnectDesktop::wheelEvent ( QWheelEvent * event )

protectedvirtual

Definition at line 342 of file ConnectDesktop.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/ConnectDesktop.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/ConnectDesktop.cpp
