Manage plugins. More...

#include <Manager.h>

Inheritance diagram for CManager:

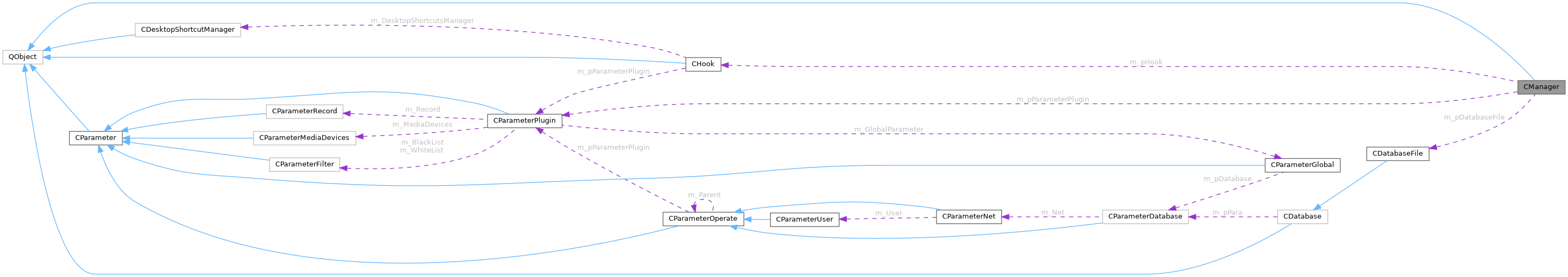

Collaboration diagram for CManager:

[legend]

Classes
class	Handle
	The Handle COperate class. More...

Signals
void	sigNewOperate (COperate *pOperate, bool bOpenSettingsDialog)
	This signal is triggered when a new operate is created in the plugin.

Public Member Functions
	CManager (QObject *parent=nullptr)

int	Initial (QString szFile=QString())

virtual COperate *	CreateOperate (const QString &id)
	New COperate pointer, the owner is caller.

virtual int	DeleteOperate (COperate *p)
	Delete COperate.

virtual COperate *	LoadOperate (const QString &szFile)
	New COperate pointer from file, the owner is caller.

virtual int	SaveOperate (COperate *pOperate)
	Accept Operate parameters to file.

virtual QList< QWidget * >	GetSettingsWidgets (QWidget *parent)
	Get parameter settings widget.

virtual int	LoadSettings (const QString szFile=QString())
	Load Client parameters from file.

virtual int	SaveSettings (const QString szFile=QString())
	Save Client parameters to file.

CParameterGlobal *	GetGlobalParameters ()
	Get Global Parameters.

virtual int	EnumPlugins (Handle *handle)
	Enum plugins.

virtual int	EnumPlugins (std::function< int(const QString &id, CPlugin *pPlugin)> cb)
	Enum plugins.

const QString	Details () const

Private Slots
void	slotCaptureAllKeyboard ()

Private Member Functions
int	LoadPlugins ()

int	LoadPlugin (const QString &szPath)
	LoadPlugin.

int	FindPlugins (QDir dir, QStringList filters)

int	AppendPlugin (CPlugin *plugin)
	Append Plugin.

Private Attributes
QString	m_szSettingsFile

QMap< QString, CPlugin * >	m_Plugins

qint8	m_FileVersion

QSharedPointer< QTranslator >	m_Translator

CHook *	m_pHook

CParameterPlugin *	m_pParameterPlugin

QString	m_szDetails

CDatabaseFile *	m_pDatabaseFile

Detailed Description

Manage plugins.

Definition at line 47 of file Manager.h.

Constructor & Destructor Documentation

◆ ~CManager()

CManager::~CManager ( )

virtual

Definition at line 50 of file Manager.cpp.

Member Function Documentation

◆ AppendPlugin()

int CManager::AppendPlugin ( CPlugin * plugin )

private

Append Plugin.

Parameters

plugin

Returns

Definition at line 312 of file Manager.cpp.

◆ CreateOperate()

COperate * CManager::CreateOperate ( const QString & id )

virtual

New COperate pointer, the owner is caller.

[CManager CreateOperate]

The caller must be call DeteleOperate() to delete it, when it isn't need. The caller must connect COperate::sigFinished, then delete it( Use DeleteOperate() )

Parameters

id Plugin ID

See also: DeleteOperate

Definition at line 340 of file Manager.cpp.

◆ DeleteOperate()

int CManager::DeleteOperate ( COperate * p )

virtual

Delete COperate.

[CManager CreateOperate]

Definition at line 368 of file Manager.cpp.

◆ Details()

const QString CManager::Details ( ) const

Definition at line 632 of file Manager.cpp.

◆ EnumPlugins() [1/2]

int CManager::EnumPlugins ( Handle * handle )

virtual

Enum plugins.

Definition at line 604 of file Manager.cpp.

◆ EnumPlugins() [2/2]

virtual int CManager::EnumPlugins ( std::function< int(const QString &id, CPlugin *pPlugin)> cb )

virtual

Enum plugins.

Note: It is need c++ standard 11

Parameters

cb	Process plugins callback function
id	plugin id
pPlugin	CPlugin pointer

◆ FindPlugins()

int CManager::FindPlugins	(	QDir	dir,
		QStringList	filters
	)

private

Definition at line 238 of file Manager.cpp.

◆ GetGlobalParameters()

CParameterGlobal * CManager::GetGlobalParameters ( )

Get Global Parameters.

Definition at line 532 of file Manager.cpp.

◆ GetSettingsWidgets()

QList< QWidget * > CManager::GetSettingsWidgets ( QWidget * parent )

virtual

Get parameter settings widget.

Returns: Parameter widget. The QWidget owner is caller.

Note

This window is generally derived from CParameterUI. For example: CParameterPluginUI If it is not derived from CParameterUI, then you need to implement the following interfaces:

virtual int SetParameter(CParameter* pParameter);
virtual int Accept();

Usage:

void MainWindow::on_actionSettings_triggered()
{
    CParameterDlgSettings set(&m_Parameter, this);
    auto viewers = m_Manager.GetSettingsWidgets(&set);
    set.AddViewers(viewers);
    if(CParameterDlgSettings::Accepted == RC_SHOW_WINDOW(&set))
    {
        m_Manager.SaveSettings();
        m_Parameter.Save();
    }
    foreach(auto v, viewers) {
        v->deleteLater();
    }
}

Connect the signal(accepted) to the slot(slotAccept) in CParameterDlgSettings

    foreach(auto p, wViewer)
    {
        QString szMsg;
        QWidget* pView = p;
        if(bScroll)
        {
            QScrollArea* pScroll = new QScrollArea(ui->tabWidget);
            if(!pScroll) continue;
            pScroll->setWidget(p);
            pView = pScroll;
        }
        ui->tabWidget->addTab(pView, p->windowIcon(), p->windowTitle());
        bool check = false;
        check = connect(this, SIGNAL(accepted()), p, SLOT(slotAccept()));
        if(!check)
        {
            szMsg = "Class '" + QString(p->metaObject()->className())
            + "' must has slot slotAccept(), please add it. "
                + "Or the class derived from CParameterUI";
            qCritical(log) << szMsg;
        }
        Q_ASSERT_X(check, "CParameterDlgSettings", szMsg.toStdString().c_str());
    }

See also: CParameterPluginUI CParameterDlgSettings

[Get the widget to set global parameters for the plugin]

Definition at line 539 of file Manager.cpp.

◆ Initial()

int CManager::Initial ( QString szFile = QString() )

Definition at line 77 of file Manager.cpp.

◆ LoadOperate()

COperate * CManager::LoadOperate ( const QString & szFile )

virtual

New COperate pointer from file, the owner is caller.

The caller must delete it(call DeleteOperate()), when it isn't need. The caller must connect COperate::sigFinished, then delete it (Use DeleteOperate() )

See also: DeleteOperate

Definition at line 401 of file Manager.cpp.

◆ LoadPlugin()

int CManager::LoadPlugin ( const QString & szPath )

private

LoadPlugin.

Parameters

szPath must be absolute.

Returns

Definition at line 282 of file Manager.cpp.

◆ LoadPlugins()

int CManager::LoadPlugins ( )

private

Definition at line 167 of file Manager.cpp.

◆ LoadSettings()

int CManager::LoadSettings ( const QString szFile = QString() )

virtual

Load Client parameters from file.

Parameters

szFile file name

Definition at line 504 of file Manager.cpp.

◆ SaveOperate()

int CManager::SaveOperate ( COperate * pOperate )

virtual

Accept Operate parameters to file.

Definition at line 451 of file Manager.cpp.

◆ SaveSettings()

int CManager::SaveSettings ( const QString szFile = QString() )

virtual

Save Client parameters to file.

Parameters

szFile file name

Definition at line 518 of file Manager.cpp.

◆ sigNewOperate

void CManager::sigNewOperate	(	COperate *	pOperate,
		bool	bOpenSettingsDialog
	)

signal

This signal is triggered when a new operate is created in the plugin.

Parameters

pOperate	a new operate is created.
bOpenSettingsDialog	true: open the settings dialog false: don't open the settings dialog

◆ slotCaptureAllKeyboard

void CManager::slotCaptureAllKeyboard ( )

privateslot

Definition at line 655 of file Manager.cpp.

Member Data Documentation

◆ m_FileVersion

qint8 CManager::m_FileVersion

private

Definition at line 232 of file Manager.h.

◆ m_pDatabaseFile

CDatabaseFile* CManager::m_pDatabaseFile

private

Definition at line 237 of file Manager.h.

◆ m_pHook

CHook* CManager::m_pHook

private

Definition at line 234 of file Manager.h.

◆ m_Plugins

QMap<QString, CPlugin*> CManager::m_Plugins

private

Definition at line 231 of file Manager.h.

◆ m_pParameterPlugin

CParameterPlugin* CManager::m_pParameterPlugin

private

Definition at line 235 of file Manager.h.

◆ m_szDetails

QString CManager::m_szDetails

private

Definition at line 236 of file Manager.h.

◆ m_szSettingsFile

QString CManager::m_szSettingsFile

private

Definition at line 230 of file Manager.h.

◆ m_Translator

QSharedPointer<QTranslator> CManager::m_Translator

private

Definition at line 233 of file Manager.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Manager.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Manager.cpp
