Plugin interface. More...

#include <Plugin.h>

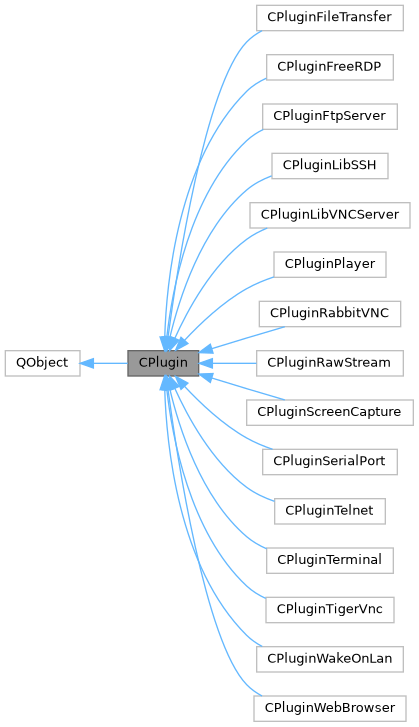

Inheritance diagram for CPlugin:

[legend]

Collaboration diagram for CPlugin:

Public Types
enum class	TYPE { RemoteDesktop , Terminal , Client , Service , FileTransfers , NetworkTools , Tools , Custom = 1000 }

Signals
void	sigNewOperate (COperate *pOperate, bool bOpenSettingsDialog)
	This signal is triggered when a new operate is created in the plugin.

Public Member Functions
	CPlugin (QObject *parent=nullptr)

virtual const TYPE	Type () const =0

virtual const QString	TypeName (const TYPE t) const

virtual const QString	Id () const
	ID. Default: Type() + ":" + Protocol() + ":" + Name()

virtual const QString	Protocol () const =0
	Plugin Protocol.

virtual const QString	Name () const =0
	This name must be the same as the project name (${PROJECT_NAME}). The translation file (${PROJECT_NAME}_*.ts)) name is associated with it.

virtual const QString	DisplayName () const
	The plugin display name.

virtual const QString	Description () const =0
	Plugin description.

virtual const QString	Version () const =0
	Version.

virtual const QIcon	Icon () const =0

virtual const QString	Details () const
	Display more information in About dialog or log.

Protected Member Functions
virtual Q_INVOKABLE COperate *	CreateOperate (const QString &szId, CParameterPlugin *para)
	New COperate instance.

virtual COperate *	OnCreateOperate (const QString &szId)=0

virtual Q_INVOKABLE int	DeleteOperate (COperate *p)
	Delete COperate.

virtual Q_INVOKABLE QWidget *	GetSettingsWidget (QWidget *parent)
	Get the widget to set global parameters for the plugin.

Private Member Functions
Q_INVOKABLE int	InitTranslator ()
	Initialize the translation resource, which is only called by CManager.

Private Attributes
QSharedPointer< QTranslator >	m_Translator

Detailed Description

Plugin interface.

Definition at line 14 of file Plugin.h.

Member Enumeration Documentation

◆ TYPE

enum class CPlugin::TYPE

strong

Definition at line 22 of file Plugin.h.

Constructor & Destructor Documentation

◆ ~CPlugin()

CPlugin::~CPlugin ( )

virtual

Definition at line 16 of file Plugin.cpp.

Member Function Documentation

◆ CreateOperate()

COperate * CPlugin::CreateOperate	(	const QString &	szId,
		CParameterPlugin *	para
	)

protectedvirtual

New COperate instance.

[CPlugin CreateOperate]

Only is called by CManager

COperate* CManager::CreateOperate(const QString& id)
{
    COperate* pOperate = nullptr;
    auto it = m_Plugins.find(id);
    if(m_Plugins.end() != it)
    {
        bool bRet = 0;
        qDebug(log) << "CreateOperate id:" << id;
        auto plugin = it.value();
        if(plugin) {
            //p = plugin->CreateOperate(id);
            bRet = QMetaObject::invokeMethod(
                plugin,
                "CreateOperate",
                Qt::DirectConnection,
                Q_RETURN_ARG(COperate*, pOperate),
                Q_ARG(QString, id),
                Q_ARG(CParameterPlugin*, m_pParameterPlugin));
            if(!bRet) {
                qCritical(log) << "Create COperate fail.";
                return nullptr;
            }
        }
    }
    return pOperate;
}

Returns: Return COperate pointer, the owner is caller

Note: The function new object pointer, the caller must delete it when don't use it.

Parameters

szId

See also: CManager::CreateOperate CManager::LoadOperate

Reimplemented in CPluginWebBrowser, and CPluginWakeOnLan.

Definition at line 87 of file Plugin.cpp.

◆ DeleteOperate()

int CPlugin::DeleteOperate ( COperate * p )

protectedvirtual

Delete COperate.

[CPlugin CreateOperate]

Reimplemented in CPluginWakeOnLan.

Definition at line 129 of file Plugin.cpp.

◆ Description()

virtual const QString CPlugin::Description ( ) const

pure virtual

Plugin description.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginRawStream, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

◆ Details()

const QString CPlugin::Details ( ) const

virtual

Display more information in About dialog or log.

eg: Include the plugin depends on the library version and description

See also: CPluginFreeRDP::Details()

Reimplemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginLibSSH, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

Definition at line 81 of file Plugin.cpp.

◆ DisplayName()

const QString CPlugin::DisplayName ( ) const

virtual

The plugin display name.

Reimplemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginRawStream, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

Definition at line 76 of file Plugin.cpp.

◆ GetSettingsWidget()

QWidget * CPlugin::GetSettingsWidget ( QWidget * parent )

protectedvirtual

Get the widget to set global parameters for the plugin.

Returns: Sets the parameters widget. Returns nullptr if no parameters are needed. This widget belongs to the caller.

Note: The widget must be a derivative of CParameterUI. Eg: CParameterPluginUI

Usage:

    foreach(auto plugin, m_Plugins) {
        if(!plugin) continue;
        QWidget* pSettings = nullptr;
        bool bRet = QMetaObject::invokeMethod(
            plugin,
            "GetSettingsWidget",
            Qt::DirectConnection,
            Q_RETURN_ARG(QWidget*, pSettings),
            Q_ARG(QWidget*, parent));
        if(!bRet) {
            qCritical(log) << "Call CPlugin::GetSettingsWidget() fail.";
            continue;
        }
        if(!pSettings) continue;
        lstWidget.push_back(pSettings);
    }

See also: CManager::GetSettingsWidgets

Reimplemented in CPluginWebBrowser.

Definition at line 151 of file Plugin.cpp.

◆ Id()

const QString CPlugin::Id ( ) const

virtual

ID. Default: Type() + ":" + Protocol() + ":" + Name()

Definition at line 71 of file Plugin.cpp.

◆ InitTranslator()

int CPlugin::InitTranslator ( )

private

Initialize the translation resource, which is only called by CManager.

Because it calls Name(), So it can't be called directly in the constructor of this class.

See also: CManager::AppendPlugin

Definition at line 24 of file Plugin.cpp.

◆ Name()

virtual const QString CPlugin::Name ( ) const

pure virtual

This name must be the same as the project name (${PROJECT_NAME}). The translation file (${PROJECT_NAME}_*.ts)) name is associated with it.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginRawStream, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

◆ Protocol()

virtual const QString CPlugin::Protocol ( ) const

pure virtual

Plugin Protocol.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginRawStream, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

◆ sigNewOperate

void CPlugin::sigNewOperate	(	COperate *	pOperate,
		bool	bOpenSettingsDialog
	)

signal

This signal is triggered when a new operate is created in the plugin.

Parameters

pOperate	a new operate is created.
bOpenSettingsDialog	true: open the settings dialog false: don't open the settings dialog

◆ Type()

virtual const TYPE CPlugin::Type ( ) const

pure virtual

Implemented in CPluginFreeRDP.

◆ TypeName()

const QString CPlugin::TypeName ( const TYPE t ) const

virtual

Definition at line 36 of file Plugin.cpp.

◆ Version()

virtual const QString CPlugin::Version ( ) const

pure virtual

Version.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginFtpServer, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginRawStream, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, CPluginWakeOnLan, and CPluginWebBrowser.

Member Data Documentation

◆ m_Translator

QSharedPointer<QTranslator> CPlugin::m_Translator

private

Definition at line 135 of file Plugin.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Plugin.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Plugin.cpp
