Operate interface. More...

#include <Operate.h>

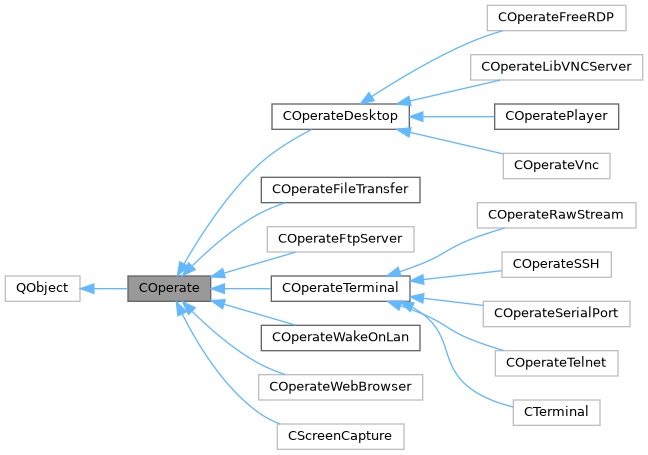

Inheritance diagram for COperate:

[legend]

Collaboration diagram for COperate:

[legend]

Signals
void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigFullScreen (bool bFullScreen)
	Full screen.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Public Member Functions
	COperate (CPlugin *plugin)

virtual QWidget *	GetViewer ()=0
	Get Viewer.

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

Property
virtual const QString	Id ()

virtual const QString	Name ()
	Name.

virtual const QString	Description ()
	Description.

virtual const QString	Protocol () const

virtual const qint16	Version () const =0

virtual const QIcon	Icon () const

virtual const QString	GetTypeName () const

Protected Slots
void	slotUpdateName ()

Protected Member Functions
virtual Q_INVOKABLE int	Initial ()
	Initial parameters and resource.

virtual Q_INVOKABLE int	Clean ()
	Clean parameters and resource.

virtual Q_INVOKABLE int	SetGlobalParameters (CParameterPlugin *pPara)=0
	Apply the global parameters of the plug-in.

Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

Static Protected Member Functions
static QObject *	createObject (const QString &className, QObject *parent=NULL)
	Create Object.

Protected Attributes
QMenu	m_Menu

QAction *	m_pActionSettings

Private Slots
virtual void	slotBlockShowWidget (const QString &className, int &nRet, void *pContext)
	Blocks the background thread and displays the window in the foreground thread.

virtual void	slotBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString szCheckBoxContext=QString())
	Block background threads and display message dialogs in foreground threads (QMessageBox)

virtual void	slotBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	Block background threads and display input dialogs in foreground threads (QInputDialog)

virtual void	slotSetClipboard (QMimeData *data)

virtual void	slotSettings ()

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent=nullptr)=0
	Open settgins dialog.

Private Attributes
CPlugin *	m_pPlugin

Load and save settings
QString	m_szSettings

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

virtual Q_INVOKABLE int	Load (QSettings &set)=0
	Load parameters.

virtual Q_INVOKABLE int	Save (QSettings &set)=0
	Save parameters.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Statistics
CSecurityLevel::Levels	m_SecurityLevel

virtual CStats *	GetStats ()
	Get statistics.

virtual CSecurityLevel::Levels	GetSecurityLevel () const
	Get Security Level.

void	sigSecurityLevel ()
	Triggered when the security level changes.

void	slotSetSecurityLevel (CSecurityLevel::Levels level)

Main Workflow
virtual int	Start ()=0
	Start.

virtual int	Stop ()=0
	Stop.

void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

Detailed Description

Operate interface.

Note

This interface is only used by users. It is implemented by plugins.
Its instance is in the main thread.

Class diagram:

Sequen diagram:

Basic implementations of the following types have been provided:

Remote desktop type:
Tool type:
- Is a non-blocking model(in main thread): COperateWakeOnLan
Termianal type: CConnecterTerminal
File transfer: COperateFileTransfer

See also: CPlugin

Definition at line 50 of file Operate.h.

Constructor & Destructor Documentation

◆ ~COperate()

COperate::~COperate ( )

virtual

Definition at line 31 of file Operate.cpp.

Member Function Documentation

◆ Clean()

int COperate::Clean ( )

protectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented in COperateFileTransfer, COperateFreeRDP, COperateFtpServer, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateSSH, COperateVnc, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

Definition at line 207 of file Operate.cpp.

◆ createObject()

QObject * COperate::createObject	(	const QString &	className,
		QObject *	parent = `NULL`
	)

staticprotected

Create Object.

Parameters

className	class name
parent

Returns: Created object

Definition at line 252 of file Operate.cpp.

◆ Description()

const QString COperate::Description ( )

virtual

Description.

const QString COperateDesktop::Description()
{
    QString szDescription;
    if(!Name().isEmpty())
        szDescription = tr("Name: ") + Name() + "\n";

    if(!GetTypeName().isEmpty())
        szDescription += tr("Type: ") + GetTypeName() + "\n";

    if(!Protocol().isEmpty()) {
        szDescription += tr("Protocol: ") + Protocol();
#ifdef DEBUG
        if(!GetPlugin()->DisplayName().isEmpty())
            szDescription += " - " + GetPlugin()->DisplayName();
#endif
        szDescription += "\n";
    }

    if(!ServerName().isEmpty())
        szDescription += tr("Server name: ") + ServerName() + "\n";

    if(GetParameter()) {
        if(!GetParameter()->m_Net.GetHost().isEmpty())
            szDescription += tr("Server address: ") + GetParameter()->m_Net.GetHost() + ":"
                             + QString::number(GetParameter()->m_Net.GetPort()) + "\n";

        QString szProxy(tr("Proxy") + " ");
        auto &proxy = GetParameter()->m_Proxy;
        switch(proxy.GetUsedType()) {
        case CParameterProxy::TYPE::SSHTunnel:
        {
            auto &sshNet = proxy.m_SSH.m_Net;
            szProxy += "(" + tr("SSH tunnel") + "): " + sshNet.GetHost() + ":"
                       + QString::number(sshNet.GetPort());
            break;
        }
        case CParameterProxy::TYPE::SockesV5:
        {
            auto &sockesV5 = proxy.m_SockesV5;
            szProxy += "(" + tr("Sockes v5") + "): " + sockesV5.GetHost() + ":"
                       + QString::number(sockesV5.GetPort());
            break;
        }
        default:
            szProxy.clear();
            break;
        }

        if(!szProxy.isEmpty())
            szDescription += szProxy + "\n";
    }

    CSecurityLevel sl(GetSecurityLevel());
    if(!(GetSecurityLevel() & CSecurityLevel::Level::No)) {
        szDescription += tr("Security level: ");
        if(!sl.GetUnicodeIcon().isEmpty())
            szDescription += sl.GetUnicodeIcon() + " ";
        szDescription += sl.GetString() + "\n";
    }

    if(!GetPlugin()->Description().isEmpty())
        szDescription += tr("Description: ") + GetPlugin()->Description();

    return szDescription;
}

See also: COperateDesktop::Description()

Reimplemented in COperateFileTransfer, COperateFtpServer, COperateRawStream, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateDesktop, and COperateTerminal.

Definition at line 51 of file Operate.cpp.

◆ GetMenu()

QMenu * COperate::GetMenu ( QWidget * parent = nullptr )

virtual

Get menu.

Reimplemented in COperateWebBrowser.

Definition at line 117 of file Operate.cpp.

◆ GetPlugin()

CPlugin * COperate::GetPlugin ( ) const

protected

Get plugin.

See also: CManager::DeleteOperate

Definition at line 219 of file Operate.cpp.

◆ GetSecurityLevel()

CSecurityLevel::Levels COperate::GetSecurityLevel ( ) const

virtual

Get Security Level.

Returns

See also: CSecurityLevel

Definition at line 129 of file Operate.cpp.

◆ GetSettingsFile()

QString COperate::GetSettingsFile ( )

virtual

Definition at line 143 of file Operate.cpp.

◆ GetStats()

CStats * COperate::GetStats ( )

virtual

Get statistics.

If so, its derived class needs to overload this function to provide statistical information.

Returns: Statistics pointer

Reimplemented in CTerminal, COperateVnc, and COperateTerminal.

Definition at line 124 of file Operate.cpp.

◆ GetTypeName()

const QString COperate::GetTypeName ( ) const

virtual

Definition at line 86 of file Operate.cpp.

◆ GetViewer()

virtual QWidget * COperate::GetViewer ( )

pure virtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implemented in COperateFileTransfer, COperateFtpServer, CScreenCapture, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

◆ Icon()

const QIcon COperate::Icon ( ) const

virtual

Definition at line 92 of file Operate.cpp.

◆ Id()

const QString COperate::Id ( )

virtual

Definition at line 36 of file Operate.cpp.

◆ Initial()

int COperate::Initial ( )

protectedvirtual

Initial parameters and resource.

Note: Call before Load()

See also: CManager::CreateOperate Load

Reimplemented in COperateFileTransfer, COperateFreeRDP, COperateFtpServer, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateSSH, CTerminal, COperateVnc, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

Definition at line 190 of file Operate.cpp.

◆ Load() [1/2]

virtual Q_INVOKABLE int COperate::Load ( QSettings & set )

protectedpure virtual

Load parameters.

Implemented in COperateFileTransfer, COperateFtpServer, CScreenCapture, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

◆ Load() [2/2]

int COperate::Load ( QString szFile = QString() )

protectedvirtual

Load parameters from file.

Note: Call after Initial()

See also: CManger::LoadOperate Initial()

Definition at line 164 of file Operate.cpp.

◆ Name()

const QString COperate::Name ( )

virtual

Name.

const QString COperateDesktop::Name()
{
    QString szName;
    // Show the name of parameter
    if(GetParameter() && !(GetParameter()->GetName().isEmpty()))
        szName += GetParameter()->GetName();
    else {
        // Show the prefix of protocol
        if(GetParameter() && GetParameter()->GetGlobalParameters()
            && (GetParameter()->GetGlobalParameters()->GetNameStyles()
                & CParameterPlugin::NameStyle::Protocol)
            && !Protocol().isEmpty())
            szName = Protocol() + ":";
        // Show the server name
        szName += ServerName();
    }

    // Show the prefix of security level
    QString szSecurityLevel;
    CSecurityLevel sl(GetSecurityLevel());
    if((GetParameter()->GetGlobalParameters()->GetNameStyles()
         & CParameterPlugin::NameStyle::SecurityLevel)
        && !(GetSecurityLevel() & CSecurityLevel::Level::No)
        && !sl.GetUnicodeIcon().isEmpty())
        szSecurityLevel = sl.GetUnicodeIcon().left(2);

    return szSecurityLevel + szName;
}

See also: COperateDesktop::Name()

Reimplemented in COperateFileTransfer, COperateFtpServer, COperateRawStream, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

Definition at line 46 of file Operate.cpp.

◆ OnOpenDialogSettings()

virtual QDialog * COperate::OnOpenDialogSettings ( QWidget * parent = nullptr )

privatepure virtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implemented in COperateFileTransfer, COperateFreeRDP, COperateFtpServer, COperateLibVNCServer, COperatePlayer, COperateRawStream, CScreenCapture, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateWakeOnLan, COperateWebBrowser, and COperateVnc.

◆ OpenDialogSettings()

int COperate::OpenDialogSettings ( QWidget * parent = nullptr )

virtual

Open settings dialog.

Parameters

parent

Returns

DialogCode

QDialog::Accepted
QDialog::Rejected
-1: error

See also: OnOpenDialogSettings

Definition at line 97 of file Operate.cpp.

◆ Protocol()

const QString COperate::Protocol ( ) const

virtual

Definition at line 81 of file Operate.cpp.

◆ Save() [1/2]

virtual Q_INVOKABLE int COperate::Save ( QSettings & set )

protectedpure virtual

Save parameters.

Implemented in COperateFileTransfer, COperateFtpServer, CScreenCapture, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

◆ Save() [2/2]

int COperate::Save ( QString szFile = QString() )

protectedvirtual

Save parameters to file.

Parameters

szFile File name.

See also: CManger::SaveOperate

Definition at line 177 of file Operate.cpp.

◆ SetGlobalParameters()

int COperate::SetGlobalParameters ( CParameterPlugin * pPara )

protectedpure virtual

Apply the global parameters of the plug-in.

Note: Call CParameterOperate::SetGlobalParameters to set the global parameters for the operation parameters, and connect the signals related to the global parameters.

int COperateDesktop::SetGlobalParameters(CParameterPlugin *pPara)
{
    if(GetParameter()) {
        GetParameter()->SetGlobalParameters(pPara);

        if(pPara) {
            bool check = connect(pPara, SIGNAL(sigNameStylesChanged()),
                                 this, SLOT(slotUpdateName()));
            Q_ASSERT(check);
        }

        LoadAdaptWindows();
        return 0;
    } else {
        QString szMsg = "There is not parameters! "
                        "please first create parameters, "
                        "then call SetParameter() in the ";
        szMsg += metaObject()->className() + QString("::")
                 + metaObject()->className();
        szMsg += QString("() or ") + metaObject()->className()
                 + QString("::") + "Initial()";
        szMsg += " to set the parameters pointer. "
                 "Default set CParameterClient for the parameters of operate "
                 "(CParameterOperate or its derived classes) "
                 "See CManager::CreateOperate. "
                 "If you are sure the parameter of operate "
                 "does not need CParameterClient. "
                 "Please overload the SetGlobalParameters() in the ";
        szMsg += QString(metaObject()->className()) + " . don't set it";
        qCritical(log) << szMsg.toStdString().c_str();
        Q_ASSERT(false);
    }
    return -1;
}

See also: CManager::CreateOperate CParameterPlugin

Implemented in COperateFileTransfer, COperateFtpServer, CScreenCapture, COperateWakeOnLan, COperateWebBrowser, COperateDesktop, and COperateTerminal.

Definition at line 224 of file Operate.cpp.

◆ SetSettingsFile()

int COperate::SetSettingsFile ( const QString & szFile )

virtual

Definition at line 158 of file Operate.cpp.

◆ sigFinished

void COperate::sigFinished ( )

signal

Successful disconnection signal.

Triggered only by plugins

See also: Disconnect()

◆ sigFullScreen

void COperate::sigFullScreen ( bool bFullScreen )

signal

Full screen.

emitted by operate

Parameters

bFullScreen

true: Full screen
false: Normal

◆ sigInformation

void COperate::sigInformation ( const QString & szInfo )

signal

Show information in main windows.

Note: It differs from sigShowMessageBox in that sigShowMessageBox is displayed in a dialog box

Parameters

szInfo

See also: sigShowMessageBox MainWindow::slotInformation()

◆ sigRunning

void COperate::sigRunning ( )

signal

Start success signal.

Triggered only by plugins.

The application needs to set the view property Enabled to true at this point. enable accept keyboard and mouse event
If the plugin implements its own view (non-CFrmView), set the view property Enabled to true. Allows receiving keyboard and mouse events.

See also: MainWindow::slotRunning() GetViewer() CFrmViewer::CFrmViewer

◆ sigSecurityLevel

void COperate::sigSecurityLevel ( )

signal

Triggered when the security level changes.

Its derived classes should not be triggered directly; they need to be triggered using slotSetSecurityLevel.

◆ sigShowMessageBox

void COperate::sigShowMessageBox	(	const QString &	title,
		const QString &	message,
		const QMessageBox::Icon &	icon = `QMessageBox::Information`
	)

signal

Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

Note: It differs from sigInformation in that sigInformation is not displayed in a dialog box

See also: sigInformation Connect::SetConnecter MainWindow::slotShowMessageBox

◆ sigStop

void COperate::sigStop ( )

signal

Notify the user to stop.

Triggered only by plugins Emit when you need to stop from the plug-in. For example, the peer disconnect or reset the connection or the connection is error. When the applicatioin receive the signal, call Stop() to close connect

◆ sigUpdateName

void COperate::sigUpdateName ( const QString & szName )

signal

Note: The name or icon is changed. This signal is only triggered by this class. If you need to use its derived class, please use slotUpdateName

◆ sigUpdateParameters

void COperate::sigUpdateParameters ( COperate * pOperate )

signal

Update parameters, notify application to save or show parameters.

Note: The plugin don't use it directly. Please use CParameter::sigChanged to emit this signal.

See also: COperateDesktop::SetParameter

◆ sigViewerFocusIn

void COperate::sigViewerFocusIn ( QWidget * pView )

signal

The view is focus.

Parameters

pView

◆ slotBlockInputDialog

void COperate::slotBlockInputDialog	(	const QString &	szTitle,
		const QString &	szLable,
		const QString &	szMessage,
		QString &	szText
	)

privatevirtualslot

Block background threads and display input dialogs in foreground threads (QInputDialog)

See also: CConnecter::sigBlockInputDialog() SetConnecter

Definition at line 342 of file Operate.cpp.

◆ slotBlockShowMessageBox

void COperate::slotBlockShowMessageBox	(	const QString &	szTitle,
		const QString &	szMessage,
		QMessageBox::StandardButtons	buttons,
		QMessageBox::StandardButton &	nRet,
		bool &	checkBox,
		QString	szCheckBoxContext = `QString()`
	)

privatevirtualslot

Block background threads and display message dialogs in foreground threads (QMessageBox)

See also: CConnect::sigBlockShowMessageBox

Definition at line 321 of file Operate.cpp.

◆ slotBlockShowWidget

void COperate::slotBlockShowWidget	(	const QString &	className,
		int &	nRet,
		void *	pContext
	)

privatevirtualslot

Blocks the background thread and displays the window in the foreground thread.

Parameters

className	show windows class name The class must have follower public functions: Q_INVOKABLE void SetContext(void* pContext);
nRet	If className is QDialog derived class, QDialog::exec() return value. Otherwise, ignore
pContext	pass context from CConnect::sigBlockShowWidget()

See also: CConnect::sigBlockShowWidget()

Definition at line 282 of file Operate.cpp.

◆ slotSetClipboard

void COperate::slotSetClipboard ( QMimeData * data )

privatevirtualslot

Note: The slot only is used by CBackendDesktop::SetConnect()

Definition at line 357 of file Operate.cpp.

◆ slotSetSecurityLevel

void COperate::slotSetSecurityLevel ( CSecurityLevel::Levels level )

protectedslot

Definition at line 134 of file Operate.cpp.

◆ slotSettings

void COperate::slotSettings ( )

privatevirtualslot

Definition at line 212 of file Operate.cpp.

◆ slotUpdateName

void COperate::slotUpdateName ( )

protectedslot

Definition at line 247 of file Operate.cpp.

◆ Start()

virtual int COperate::Start ( )

pure virtual

Start.

Note: Only call by user, The plugin don't call it. When plugin is started, it emit sigRunning()

See also: sigRunning()

Implemented in COperateFileTransfer, COperateFtpServer, and COperateWebBrowser.

◆ Stop()

virtual int COperate::Stop ( )

pure virtual

Stop.

Note: Only call by user, The plugin don't call it. When plugin is stopped, it emit sigFinished(). The caller receive the signal, then delete the object.

See also: sigFinished()

Implemented in COperateFileTransfer, COperateFtpServer, and COperateWebBrowser.

◆ Version()

virtual const qint16 COperate::Version ( ) const

pure virtual

Implemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, COperateVnc, and COperateDesktop.

Member Data Documentation

◆ m_Menu

QMenu COperate::m_Menu

protected

Definition at line 470 of file Operate.h.

◆ m_pActionSettings

QAction* COperate::m_pActionSettings

protected

Definition at line 471 of file Operate.h.

◆ m_pPlugin

CPlugin* COperate::m_pPlugin

private

Definition at line 476 of file Operate.h.

◆ m_SecurityLevel

CSecurityLevel::Levels COperate::m_SecurityLevel

private

Definition at line 410 of file Operate.h.

◆ m_szSettings

QString COperate::m_szSettings

private

Definition at line 351 of file Operate.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Operate.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Operate.cpp

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Slots

Private Member Functions

Private Attributes

Load and save settings

Statistics

Main Workflow

Detailed Description

Constructor & Destructor Documentation

◆ ~COperate()

Member Function Documentation

◆ Clean()

◆ createObject()

◆ Description()

◆ GetMenu()

◆ GetPlugin()

◆ GetSecurityLevel()

◆ GetSettingsFile()

◆ GetStats()

◆ GetTypeName()

◆ GetViewer()

◆ Icon()

◆ Id()

◆ Initial()

◆ Load() [1/2]

◆ Load() [2/2]

◆ Name()

◆ OnOpenDialogSettings()

◆ OpenDialogSettings()

◆ Protocol()

◆ Save() [1/2]

◆ Save() [2/2]

◆ SetGlobalParameters()

◆ SetSettingsFile()

◆ sigFinished

◆ sigFullScreen

◆ sigInformation

◆ sigRunning

◆ sigSecurityLevel

◆ sigShowMessageBox

◆ sigStop

◆ sigUpdateName

◆ sigUpdateParameters

◆ sigViewerFocusIn

◆ slotBlockInputDialog

◆ slotBlockShowMessageBox

◆ slotBlockShowWidget

◆ slotSetClipboard

◆ slotSetSecurityLevel

◆ slotSettings

◆ slotUpdateName

◆ Start()

◆ Stop()

◆ Version()

Member Data Documentation

◆ m_Menu

◆ m_pActionSettings

◆ m_pPlugin

◆ m_SecurityLevel

◆ m_szSettings
