Remote desktop operate interface. More...

#include <OperateDesktop.h>

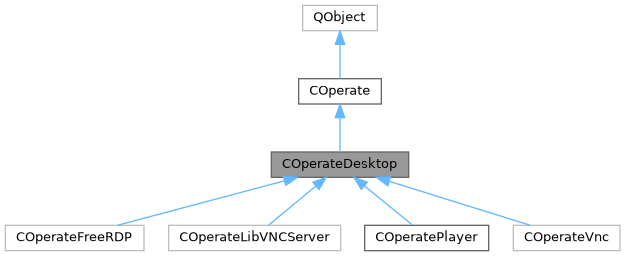

Inheritance diagram for COperateDesktop:

[legend]

Collaboration diagram for COperateDesktop:

[legend]

Public Slots
virtual int	Start () override

virtual int	Stop () override

virtual void	slotScreenShot ()

Public Member Functions
	COperateDesktop (CPlugin *plugin)

virtual CParameterBase *	GetParameter () const
	Get parameter.

virtual int	SetParameter (CParameterBase *p)
	Set parameter pointer.

virtual const QString	Id () override

virtual const QString	Name () override
	[The name of the desktop operate]

virtual const QString	Description () override
	[The name of the desktop operate]

virtual const qint16	Version () const override
	[The description of the desktop operate]

virtual QWidget *	GetViewer () override
	Get Viewer.

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual const QString	Protocol () const

virtual const QIcon	Icon () const

virtual const QString	GetTypeName () const

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

virtual CStats *	GetStats ()
	Get statistics.

virtual CSecurityLevel::Levels	GetSecurityLevel () const
	Get Security Level.

virtual int	Start ()=0
	Start.

virtual int	Stop ()=0
	Stop.

Protected Member Functions
virtual Q_INVOKABLE CBackend *	InstanceBackend ()=0
	New CBackend.

virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Set Global Parameters.

virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

virtual Q_INVOKABLE int	Load (QSettings &set) override
	Load parameters.

virtual Q_INVOKABLE int	Save (QSettings &set) override
	Save parameters.

virtual int	InitialMenu ()

virtual QString	ServerName ()
	Current connect server name (remote desktop name, if not present, then IP:PORT).

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Protected Attributes
QAction *	m_pMenuZoom

QAction *	m_pZoomToWindow

QAction *	m_pZoomAspectRatio

QAction *	m_pZoomOriginal

QAction *	m_pZoomIn

QAction *	m_pZoomOut

QSpinBox *	m_psbZoomFactor

QAction *	m_pScreenShot

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Private Slots
void	slotValueChanged (int v)
	emit by zoom menu in the class

void	slotShortcutCtlAltDel ()

void	slotShortcutLock ()

virtual void	slotSetServerName (const QString &szName)
	[Get server name]

Private Member Functions
int	LoadAdaptWindows ()

Private Attributes
CParameterBase *	m_pPara

CBackendThread *	m_pThread

CFrmViewer *	m_pFrmViewer

CFrmScroll *	m_pScroll

QString	m_szServerName

Additional Inherited Members
Signals inherited from COperate
void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigFullScreen (bool bFullScreen)
	Full screen.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

void	sigSecurityLevel ()
	Triggered when the security level changes.

void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

Protected Slots inherited from COperate
void	slotUpdateName ()

void	slotSetSecurityLevel (CSecurityLevel::Levels level)

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)
	Create Object.

Detailed Description

Remote desktop operate interface.

It starts a background thread by default. It implements a background thread to handle a operate. Can be used with plugins whose plugin interface derives from CPluginClient for operate is blocking model.

Principle: Start a background thread (CBackendThread) in Start() . Call InstanceBackend() in the thread to instantiate CBackend, and start the timer in CBackend::Start(). This timer is called in the background thread. Through the operation of the timer, start a non-Qt event loop (that is, normal loop processing. May block), See CBackend. And CBackend supports the Qt event (the signal-slot mechanism of QObject. no-block).

Sequen diagram:

Note

The interface only is implemented by plug-in
The specific plug-in needs to implement the following interface.

Implement InstanceConnect() . Generate a connection object. The connection object runs in a background thread.

See also: CBackend CBackendThread COperate CPlugin CFrmViewer

Definition at line 68 of file OperateDesktop.h.

Constructor & Destructor Documentation

◆ COperateDesktop()

COperateDesktop::COperateDesktop ( CPlugin * plugin )

explicit

Parameters

plugin The plugin pointer must be specified as the corresponding CPlugin derived class

Note: If request the global parameters of the plugin, Please instantiate the parameters and call COperateDesktop::SetParameter in the derived class( or Initial() ) to set the parameters pointer. If you are sure the parameter does not need CParameterClient. please overload the COperate::SetGlobalParameters in the derived class. don't set it. Add commentMore actions

See also: CManager::CreateConnecter SetGlobalParameters SetParameter CParameterOperate CParameterClient

◆ ~COperateDesktop()

COperateDesktop::~COperateDesktop ( )

virtual

Definition at line 35 of file OperateDesktop.cpp.

Member Function Documentation

◆ Clean()

int COperateDesktop::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented from COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 212 of file OperateDesktop.cpp.

◆ Description()

const QString COperateDesktop::Description ( )

overridevirtual

[The name of the desktop operate]

[The description of the desktop operate]

Reimplemented from COperate.

Definition at line 117 of file OperateDesktop.cpp.

◆ GetParameter()

CParameterBase * COperateDesktop::GetParameter ( ) const

virtual

Get parameter.

[Desktop set global paramets]

Definition at line 446 of file OperateDesktop.cpp.

◆ GetViewer()

QWidget * COperateDesktop::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implements COperate.

Definition at line 376 of file OperateDesktop.cpp.

◆ Id()

const QString COperateDesktop::Id ( )

overridevirtual

Reimplemented from COperate.

Definition at line 40 of file OperateDesktop.cpp.

◆ Initial()

int COperateDesktop::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

Note: Call before Load()

See also: CManager::CreateOperate Load

Reimplemented from COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 189 of file OperateDesktop.cpp.

◆ InitialMenu()

int COperateDesktop::InitialMenu ( )

protectedvirtual

Definition at line 225 of file OperateDesktop.cpp.

◆ InstanceBackend()

virtual Q_INVOKABLE CBackend * COperateDesktop::InstanceBackend ( )

protectedpure virtual

New CBackend.

the ownership is caller. if don't use, the caller must delete it.

Implemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

◆ Load()

int COperateDesktop::Load ( QSettings & set )

overrideprotectedvirtual

Load parameters.

Implements COperate.

Definition at line 516 of file OperateDesktop.cpp.

◆ LoadAdaptWindows()

int COperateDesktop::LoadAdaptWindows ( )

private

Definition at line 487 of file OperateDesktop.cpp.

◆ Name()

const QString COperateDesktop::Name ( )

overridevirtual

[The name of the desktop operate]

Reimplemented from COperate.

Definition at line 86 of file OperateDesktop.cpp.

◆ Save()

int COperateDesktop::Save ( QSettings & set )

overrideprotectedvirtual

Save parameters.

Implements COperate.

Definition at line 539 of file OperateDesktop.cpp.

◆ ServerName()

QString COperateDesktop::ServerName ( )

protectedvirtual

Current connect server name (remote desktop name, if not present, then IP:PORT).

[Get server name]

eg: Server name or Ip:Port

Returns: Current connect server name.

See also: slotSetServerName

Reimplemented in COperateVnc.

Definition at line 632 of file OperateDesktop.cpp.

◆ SetGlobalParameters()

int COperateDesktop::SetGlobalParameters ( CParameterPlugin * pPara )

overrideprotectedvirtual

Set Global Parameters.

[Desktop set global paramets]

Parameters

pPara

Returns

Implements COperate.

Definition at line 410 of file OperateDesktop.cpp.

◆ SetParameter()

int COperateDesktop::SetParameter ( CParameterBase * p )

virtual

Set parameter pointer.

Note: establishes the parameter first, and then calls this function in the constructor or Initial() to set the parameter pointer

Definition at line 451 of file OperateDesktop.cpp.

◆ slotScreenShot

void COperateDesktop::slotScreenShot ( )

virtualslot

Definition at line 592 of file OperateDesktop.cpp.

◆ slotSetServerName

void COperateDesktop::slotSetServerName ( const QString & szName )

privatevirtualslot

[Get server name]

Note: The slot only is used by CBackendDesktop::SetConnect()

Definition at line 658 of file OperateDesktop.cpp.

◆ slotShortcutCtlAltDel

void COperateDesktop::slotShortcutCtlAltDel ( )

privateslot

Definition at line 607 of file OperateDesktop.cpp.

◆ slotShortcutLock

void COperateDesktop::slotShortcutLock ( )

privateslot

Definition at line 620 of file OperateDesktop.cpp.

◆ slotValueChanged

void COperateDesktop::slotValueChanged ( int v )

privateslot

emit by zoom menu in the class

Definition at line 584 of file OperateDesktop.cpp.

◆ Start

int COperateDesktop::Start ( )

overridevirtualslot

Definition at line 381 of file OperateDesktop.cpp.

◆ Stop

int COperateDesktop::Stop ( )

overridevirtualslot

Definition at line 396 of file OperateDesktop.cpp.

◆ Version()

const qint16 COperateDesktop::Version ( ) const

overridevirtual

[The description of the desktop operate]

Implements COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 184 of file OperateDesktop.cpp.

Member Data Documentation

◆ m_pFrmViewer

CFrmViewer* COperateDesktop::m_pFrmViewer

private

Definition at line 165 of file OperateDesktop.h.

◆ m_pMenuZoom

QAction* COperateDesktop::m_pMenuZoom

protected

Definition at line 194 of file OperateDesktop.h.

◆ m_pPara

CParameterBase* COperateDesktop::m_pPara

private

Definition at line 163 of file OperateDesktop.h.

◆ m_psbZoomFactor

QSpinBox* COperateDesktop::m_psbZoomFactor

protected

Definition at line 200 of file OperateDesktop.h.

◆ m_pScreenShot

QAction* COperateDesktop::m_pScreenShot

protected

Definition at line 201 of file OperateDesktop.h.

◆ m_pScroll

CFrmScroll* COperateDesktop::m_pScroll

private

Definition at line 166 of file OperateDesktop.h.

◆ m_pThread

CBackendThread* COperateDesktop::m_pThread

private

Definition at line 164 of file OperateDesktop.h.

◆ m_pZoomAspectRatio

QAction* COperateDesktop::m_pZoomAspectRatio

protected

Definition at line 196 of file OperateDesktop.h.

◆ m_pZoomIn

QAction* COperateDesktop::m_pZoomIn

protected

Definition at line 198 of file OperateDesktop.h.

◆ m_pZoomOriginal

QAction* COperateDesktop::m_pZoomOriginal

protected

Definition at line 197 of file OperateDesktop.h.

◆ m_pZoomOut

QAction* COperateDesktop::m_pZoomOut

protected

Definition at line 199 of file OperateDesktop.h.

◆ m_pZoomToWindow

QAction* COperateDesktop::m_pZoomToWindow

protected

Definition at line 195 of file OperateDesktop.h.

◆ m_szServerName

QString COperateDesktop::m_szServerName

private

Definition at line 184 of file OperateDesktop.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/OperateDesktop.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/OperateDesktop.cpp

Public Slots

Public Member Functions

Protected Member Functions

Protected Attributes

Private Slots

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ COperateDesktop()

◆ ~COperateDesktop()

Member Function Documentation

◆ Clean()

◆ Description()

◆ GetParameter()

◆ GetViewer()

◆ Id()

◆ Initial()

◆ InitialMenu()

◆ InstanceBackend()

◆ Load()

◆ LoadAdaptWindows()

◆ Name()

◆ Save()

◆ ServerName()

◆ SetGlobalParameters()

◆ SetParameter()

◆ slotScreenShot

◆ slotSetServerName

◆ slotShortcutCtlAltDel

◆ slotShortcutLock

◆ slotValueChanged

◆ Start

◆ Stop

◆ Version()

Member Data Documentation

◆ m_pFrmViewer

◆ m_pMenuZoom

◆ m_pPara

◆ m_psbZoomFactor

◆ m_pScreenShot

◆ m_pScroll

◆ m_pThread

◆ m_pZoomAspectRatio

◆ m_pZoomIn

◆ m_pZoomOriginal

◆ m_pZoomOut

◆ m_pZoomToWindow

◆ m_szServerName
